Why use Alupanel A-Lite Digital?
- "The Precision Surface for High-Definition Print"
- Application: Flat digital print
- Intended Use: Sign, display and Print (not architectural facades)
- Manufactured in the UK
- Has a 100% Recycled LDPE core Panels can be fully recycled after use
- Fire classification: EN 13501-1:2018 Class C-s2,d0 *
- Specially developed brighter Signal White finish
- Benefits from a thicker 0.22mm skin
- High quality 5005 alloy
- Digitally enhanced Matt polyester surface
- Rigid, lightweight panel
- Flat, smooth, uniform surface
- Clean, easy-peel film, reducing cleaning, labour and production turn around
- Premium quality print product
- 2-year warranty
* 2mm - 6mm signal white digital panels with an LDPE core meet fire test EN 13501 to class C-s2,d0.
Need a print panel with a higher fire rating?
Alupanel A-Lite Digital M1 is available as a 3mm signal white digital panel with an LDPE and Calcium Carbonate core with NF P 92-507 fire classification to Class M1.
See Alupanel A-Lite Digital M1 here
Multipanel UK is certainly an organisation which we are proud to be associated with, they operate at a high level and constantly produce quality products. The fact they’re based here in the UK, not too far from us which is another huge bonus – especially with a volume of short turn-around project we are exposed to!
David Bowen, The Bigger Printing Co.
Overview
Alupanel A-Lite Digital
Elevate your work with Alupanel A-Lite Digital, our premium-tier composite panel engineered for those who refuse to compromise on quality. While standard panels get the job done, A-Lite Digital is meticulously crafted with high-grade 5005-series alloy with a 0.22mm skin to provide an ultra-flat, rigid canvas that thrives under the pressure of high-speed production.
The difference is in the finish: our specialised Signal White Digital coating offers consistent ink adhesion, transforming every design into a masterpiece of increased brightness, vivid colour intensity, and long-term durability. When your reputation relies on the sharpest, most vibrant prints in the industry, this is the superior surface your business deserves. Alupanel A-Lite Digital is also available with a higher fire rated M1 class core (see below)
Key Benefits:
Brighter, More Intense Colours:
Experience significantly enhanced ink adhesion on our optimised coating print surface, resulting in richer, more vibrant, and attention-grabbing graphics.
Exceptional Print Clarity:
The ultra-smooth, uniform Signal White Digital polyester paint surface provides the ideal foundation for high-resolution digital and screen printing, ensuring crisp and detailed results at high speed
Durability & Flatness:
Benefit from a rigid and impact-resistant panel featuring thicker 0.22mm skins with a 5005 series alloy base. This provides superior stability and exceptional flatness..
Effortless Routing & Fabrication:
The combination of our 100% recycled LDPE core and the 5005 series alloy which offers excellent machinability, make routing and fabrication cleaner and easier, saving you time and tooling costs.
Faster, Cleaner Production:

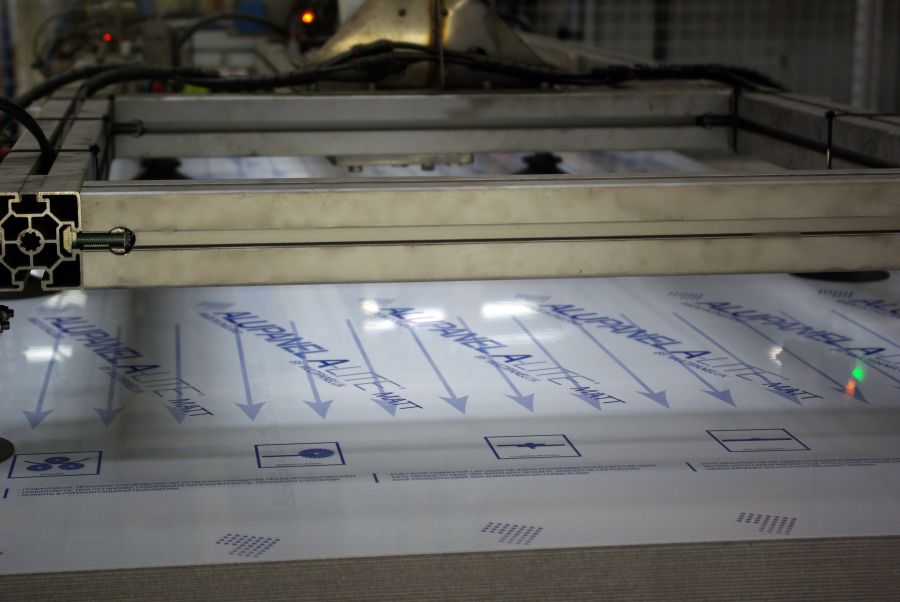

Our improved low-tack protective liner releases effortlessly, saving you time and preventing ghosting and print lines, contributing to a smoother production process.
Environmentally Conscious Choice:
Manufactured in the UK with a 100% recycled LDPE core, supporting sustainable practices as we offer recycling options for used panels post project completion.
Versatile Applications:
Perfect for a wide array of flat applications, including direct UV & screen printing, sign making, wayfinding, POS/POP displays, vinyl application, and more.
Guaranteed Quality:
- 2-year warranty (see warranty terms).
Optimised for Efficiency:
- Available in a comprehensive range of formats, thicknesses (2mm to 6mm), widths (1000mm to 2050mm), and lengths (2440mm to 6050mm) to maximise material yield and minimise waste.
Fabrication Guide
learn how to get the best out of the product here
Videos:
see how it works here:
Applications

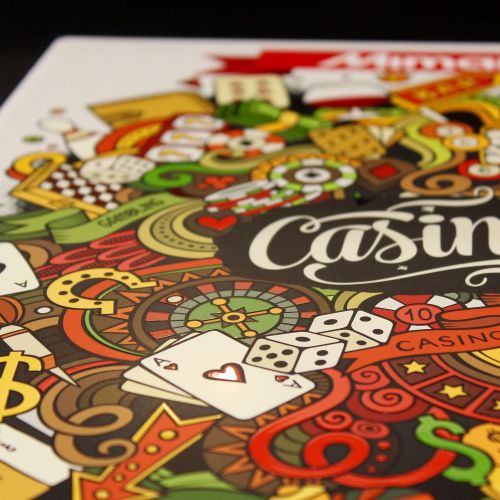

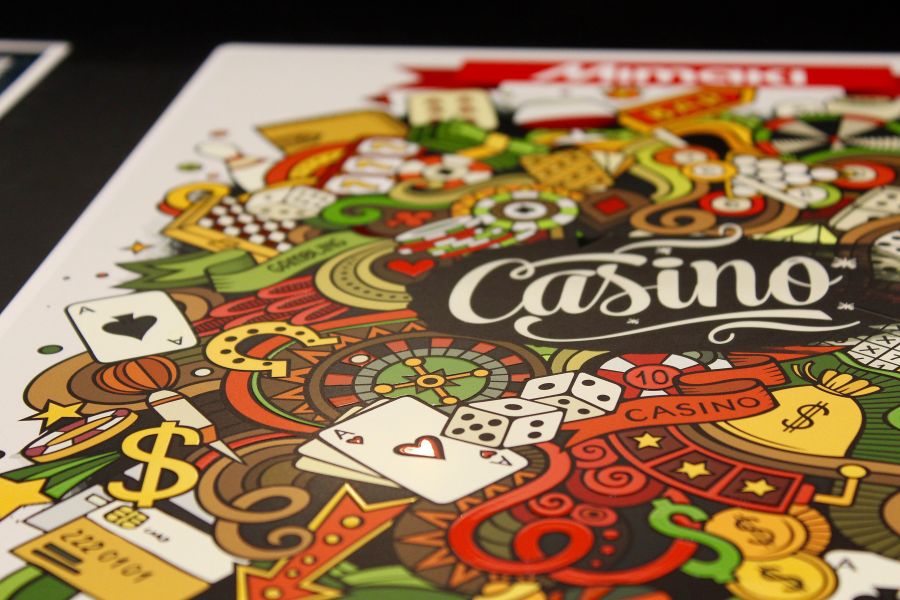

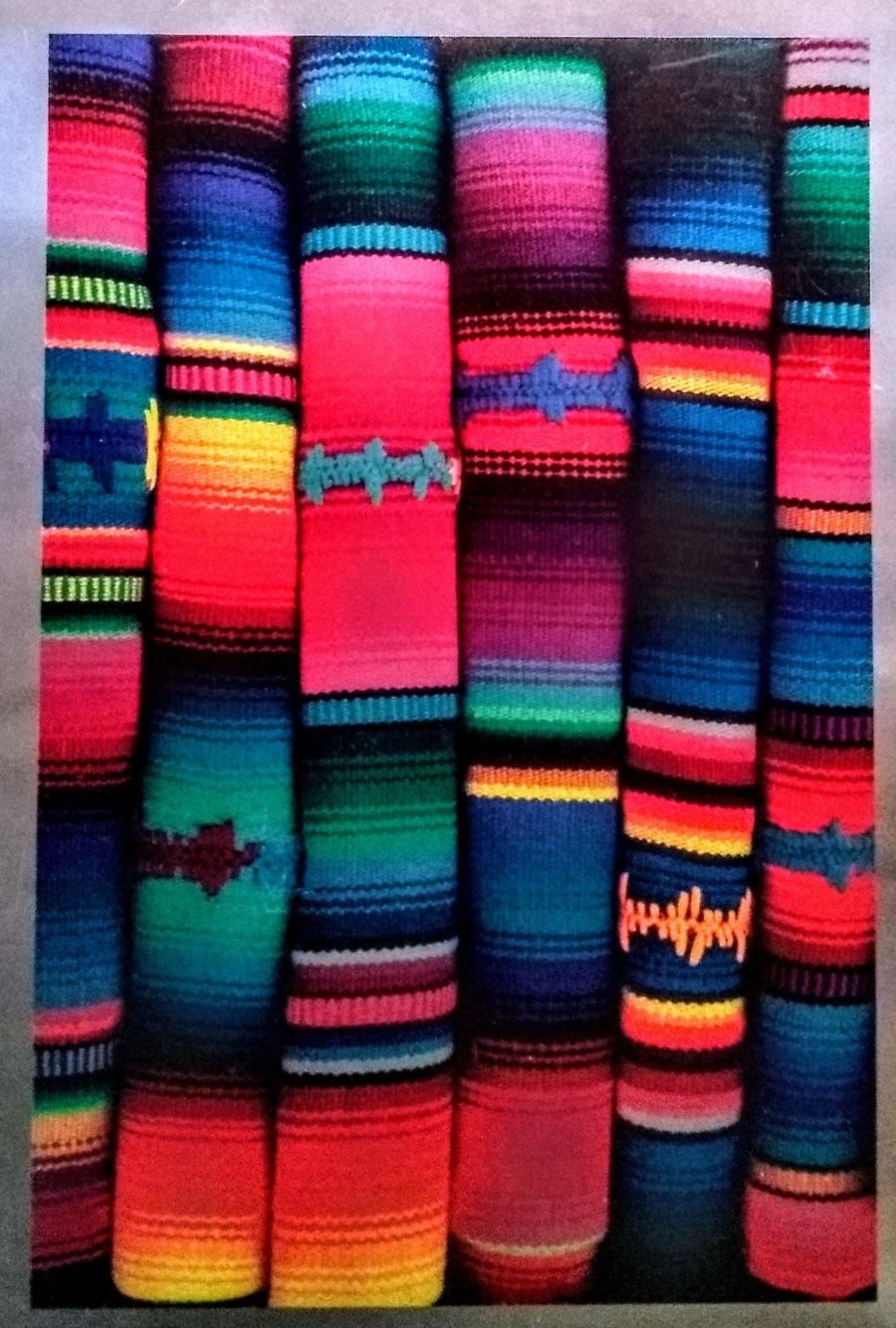

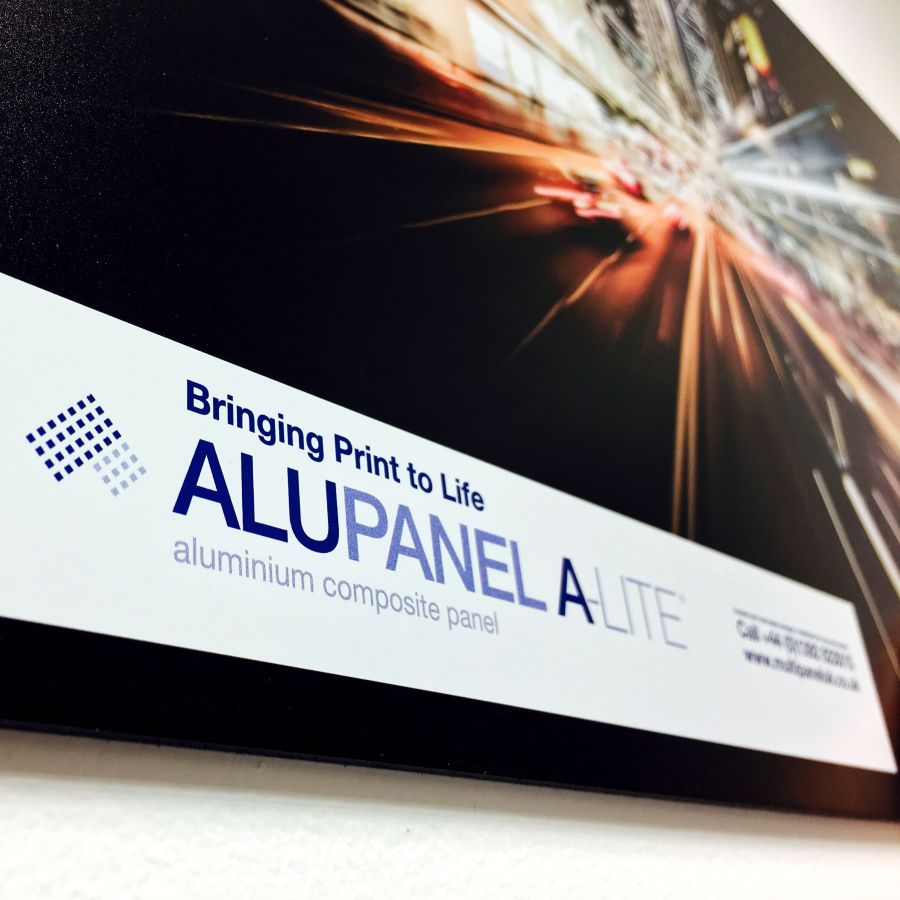

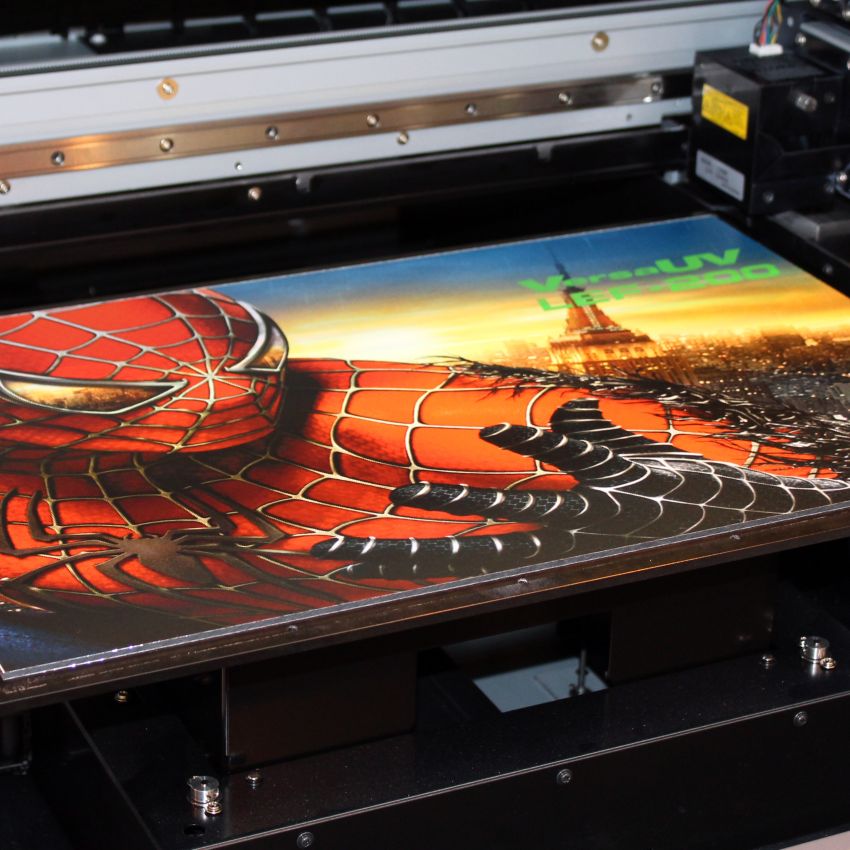

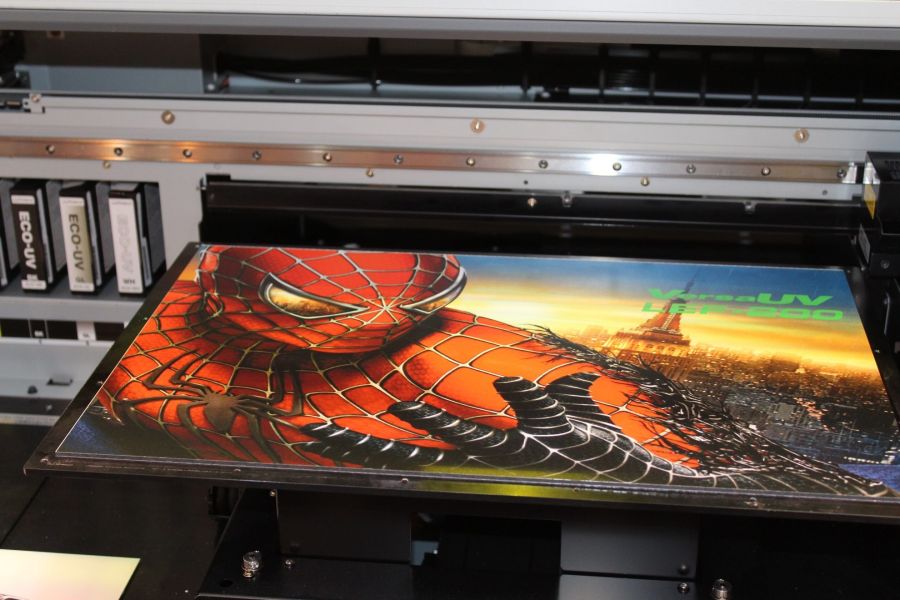

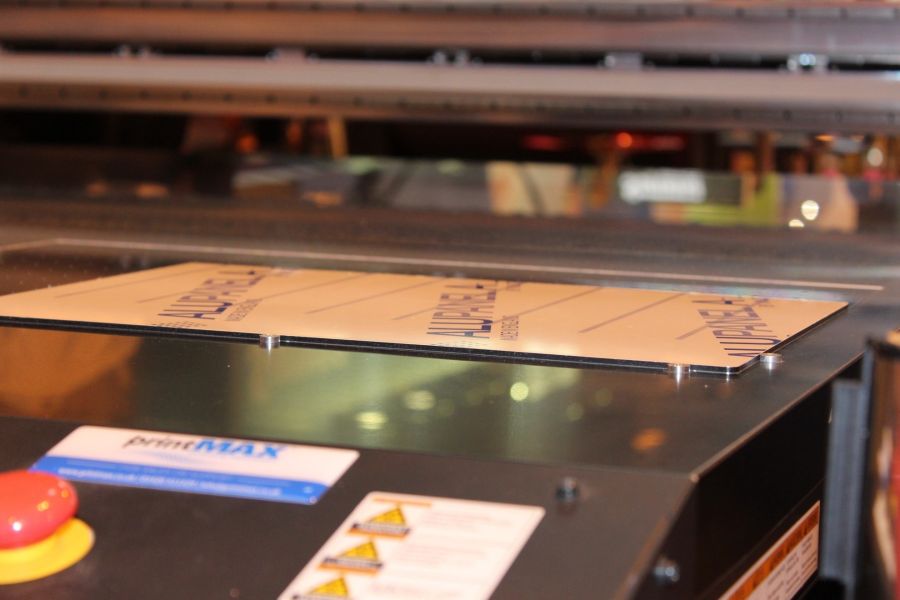

Alupanel A-Lite Digital is suitable for a variety of flat applications particularly those where high quality, vibrant printing is required.
<<< Click the left and right arrows on the photo to see more examples of product applications
This product can be used for the following applications:
- Sign Making
- Wayfinding
- Standoff Lettering
- Lightweight Hanging Signs

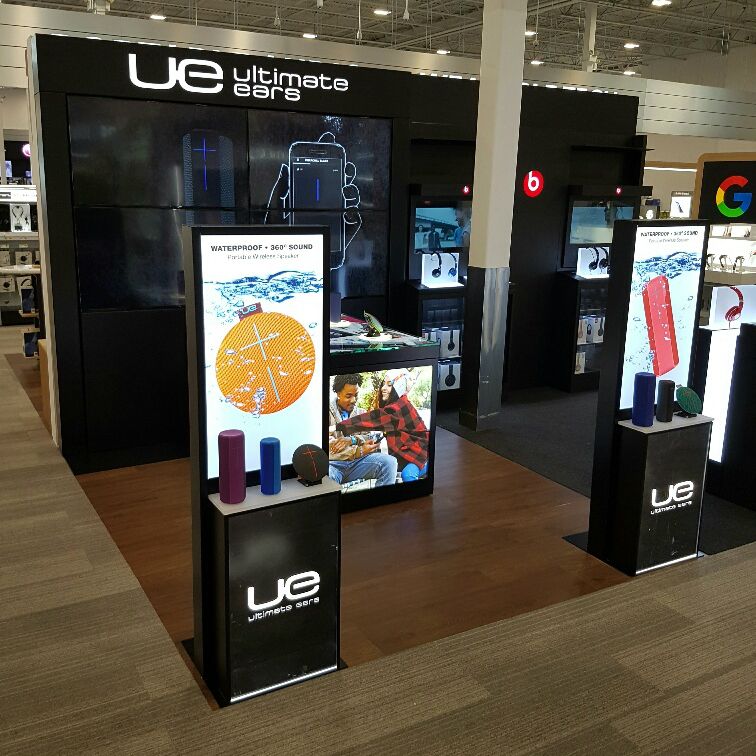

- POS Displays
- Vinyl Application
- Modular Sign Systems
- Hoarding Panels
- Corporate ID
- Exhibition Design
- Outdoor Advertising

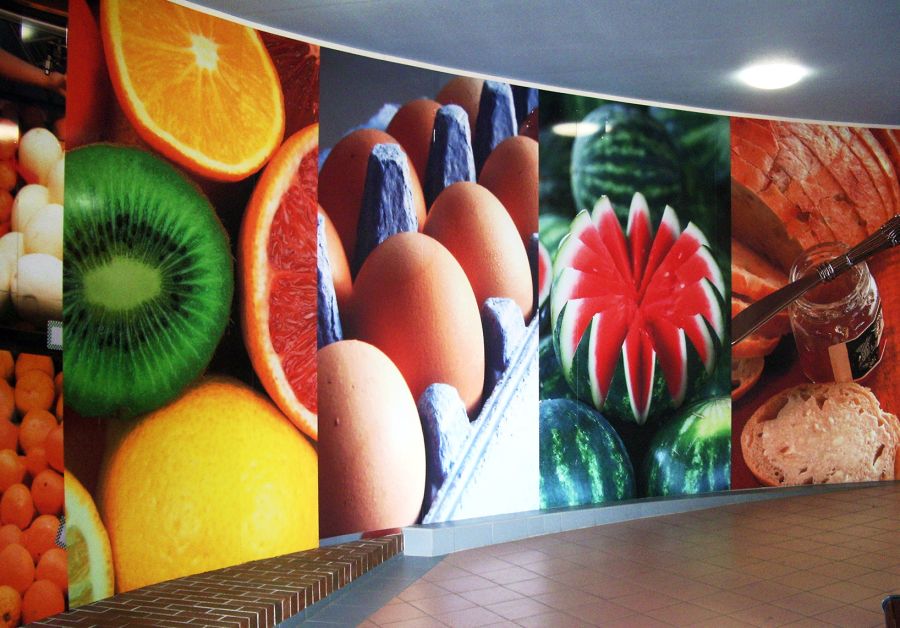

- Interior Panels & Decoration

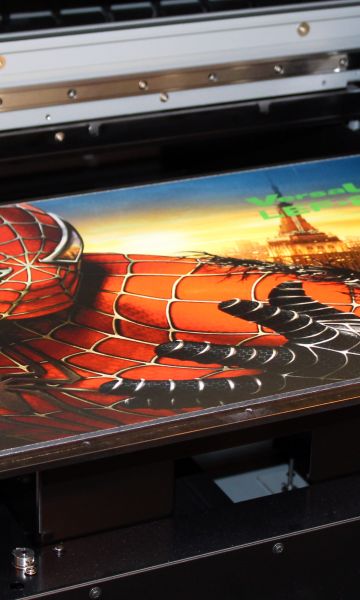

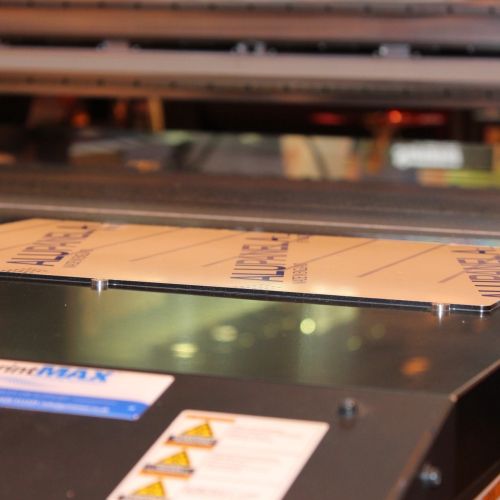

- Direct UV & Screen Printing
Fabrications
The following fabrication techniques are commonly undertaken with this product and more information can be found in the Fabrication Guide in the download section
- Sawing & Cutting
- Routing
- Drilling
- Clamping & Bolting
- Spray Painting & coating
- UV and Screen Printing
Colours
The superb digitally enhanced colour point on the Alupanel A-Lite Digital finish is Signal White matt digital
Technical
In this table you will find the general technical data for the product range. Please also refer to the Technical Data Sheet (TDS) in the 'Downloads' section.
Sheet sizes: Alupanel A-Lite Digital is a available in a wide variety of dimensions, subject to change, please reach out to your local sales representative or contact us via the enquiries page to discuss your project requirement.
| Panel Thickness | 2 | 3 | 4 | 6 |
|---|---|---|---|---|
| Aluminium Skin Thickness | 0.22 | 0.22 | 0.22 | 0.22 |
| Weight | 2.66 | 3.61 | 4.56 | 6.46 |
| 1000 x 2050 | ||||
| 1000 x 3050 | ||||
| 1000 x 3200 | ||||
| 1220 x 2440 | ||||
| 1220 x 3050 | ||||
| 1250 x 2550 | ||||
| 1250 x 3050 | ||||
| 1250 x 3200 | ||||
| 1250 x 4000 | ||||
| 1500 x 3050 | ||||
| 1500 x 3200 | ||||
| 1500 x 4000 | ||||
| 1500 x 4050 | ||||
| 1525 x 3050 | ||||
| 1560 x 3050 | ||||
| 2000 x 3050 | ||||
| 2000 x 3200 | ||||
| 2000 x 4000 | ||||
| 2000 x 4050 | ||||
| 2050 x 3050 | ||||
| 2050 x 4050 |
| Panel Thickness | 3 |
| Sound Absorption NRC | 0.05 |
| Sound Attenuation Rw db | 24 |
| Water Absorption % by Volume | 0.01 |
| Thermal Performance R Values | 0.0080 |
| Core Composition | 100 % recycled LDPE |
| Fire Performance | EN 13501-1:2018 Class C-s2,d0 |
| Tensile Strength of Aluminium Layers | 149MPa |
| Thickness (mm) | +/- 0.2 |
| Width (mm) | -0 +2 |
| Length (mm) | -0 +3 |
| Diagonal (mm) | -0 +5 |
| Thermal Expansion | 2.4mm/m @100ºC Temp Difference |
| Aluminium Thickness | As specified in EN485-4 |
| Pencil Hardness | 2H |
| Toughness of Coating | 3T |
| Temperature Resistance | -50ºC to +80ºC |
| Impact Strength (kg/CM2) | |
| Boiling Water Resistance | Boiling for 2hrs without change |
| Acid Resistance | Surface immersed in 2% HC1 for 24hrs without change |
| Alkali Resistence | Surface immersed in NaHO engine oil for 24hrs without change |
| Oil Resistance | Surface immersed in 20# engine oil for 24hrs without change |
| Solvent Resistance | Cleaned 100 times with Dimethylbenzene without change |
| Cleaning Resistance | >1000 times without change |
| Peel Strength | >5 Newton/mm |
