Why use Alupanel X?
- The Proven Substrate for Everyday Rigid Signage
- Manufactured in the UK, reducing your carbon footprint
- 100% Recycled LDPE core and can be fully recycled after use
- Meets fire test EN 13501-1:2018 to class C-s2,d0 *
- Excellent value and rigidity

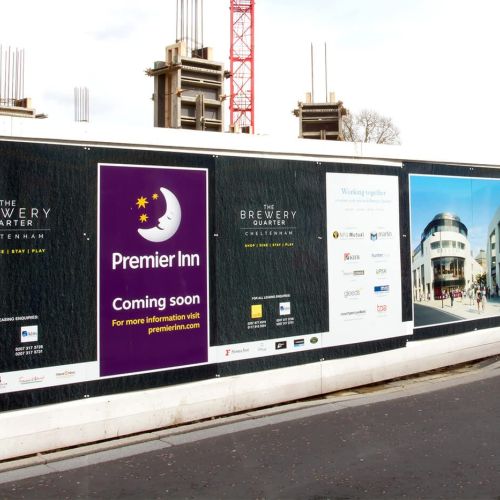

- Ideal for hoarding or construction sites
- High UV resistance
- Incredibly flat, smooth finish **
- Suitable for screen/digital printing***
- Ideal for vinyl application and painting
- 1-year limited warranty ****
* Includes all painted finishes, excludes Brushed finishes
** Brushed finishes are produced from natural aluminium and therefore as a natural raw material and despite each sheet being very similar the process can make the finish and tone differ slightly between sheets and batches
*** Brushed finishes (Aluminium) are printable but do not have a digital finish or guarantee. Please test print first and consult your hardware supplier before printing on reflective surfaces.
**** Brushed Aluminium silver can be used outdoors for short term projects (see examples here in our gallery)
I chose to use Alupanel for my front wind splitter because it was not only a cost-effective alternative to carbon fibre, but because it let me perform different manufacturing procedures on it easily. After creating a wooden prototype, I transferred information and dimensions to a CAD program and contacted a waterjet/forming business to execute my design. The end result was a robust and visually stunning front splitter that really completed the front end of my custom wide body MK4 GTI. Being able to bend, shear and waterjet makes this material very user friendly and therefore an excellent resource for many aero uses.
Jason Bos Machining and Fabrication (JB Maf)
Overview
Alupanel X is the highly efficient, economic solution designed as your go-to material for all flat applications.
Offering amazing value for money, Alupanel X is the obvious choice for short-term projects, such as hoarding or large-scale vinyl graphics and direct print, where structural load-bearing is not required.
Its flat, smooth finish and availability in core colours make it a versatile substrate for immediate graphic application, delivering reliable performance and cost-effectiveness for everyday needs.
Key Benefits:
Exceptional Value:
A highly efficient and economic solution perfect for high-volume, short-term projects.
Graphics Ready: Incredibly flat, smooth finish
Suitable for digital/screen printing, vinyl application, and painting.
Simple Handling: Lightweight yet rigid,
Ensuring the panels are easy to handle and install on site.
All-Weather Reliability:
High UV resistance ensures stability in exterior environments.
Aesthetic Availability:
Available in core colour finishes for diverse project needs.
Fabrication Guide
Learn how to the get the best out of the product here
Videos:
See how it works here:
Applications
Alupanel X is only recommended for use in flat applications only but can be used in a wide range of situations in commercial, industrial and domestics environments.
<<< Click the left and right arrows on the photo to see more examples of product applications
This product can be used for the following applications:

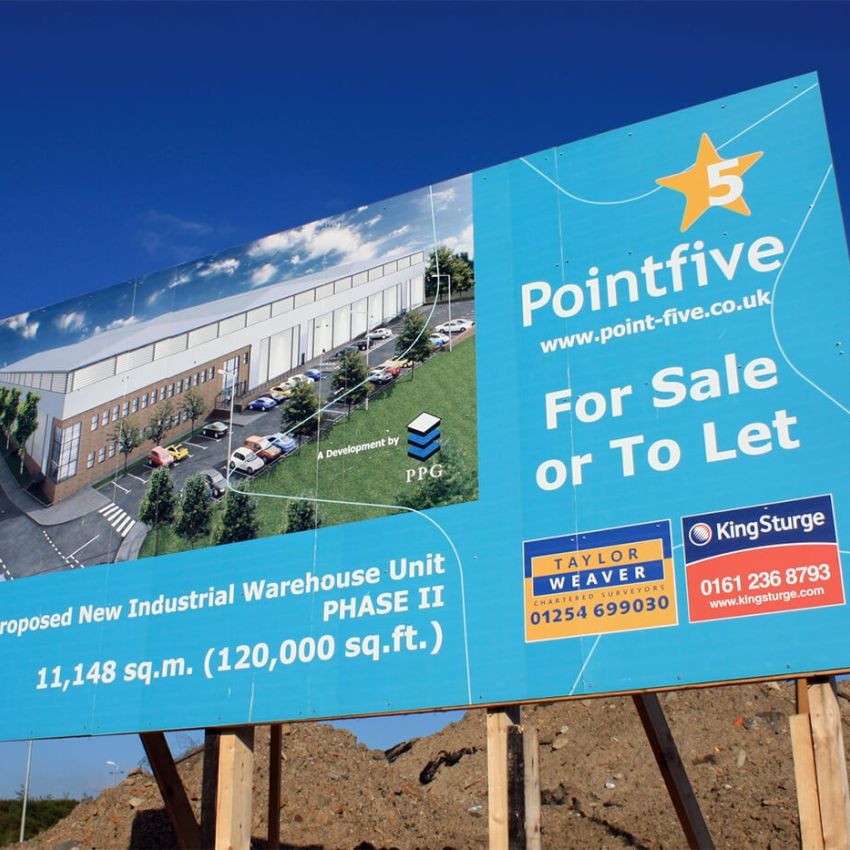

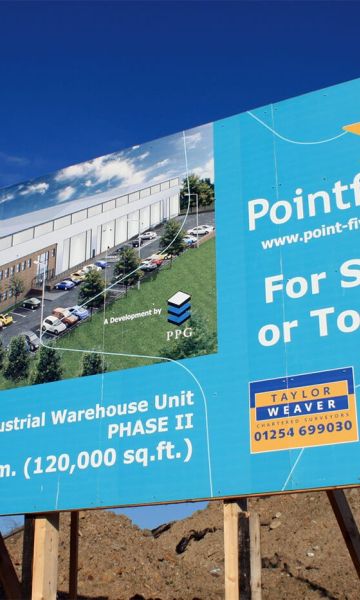

- Sign Making
- Wayfinding
- 3D Lettering

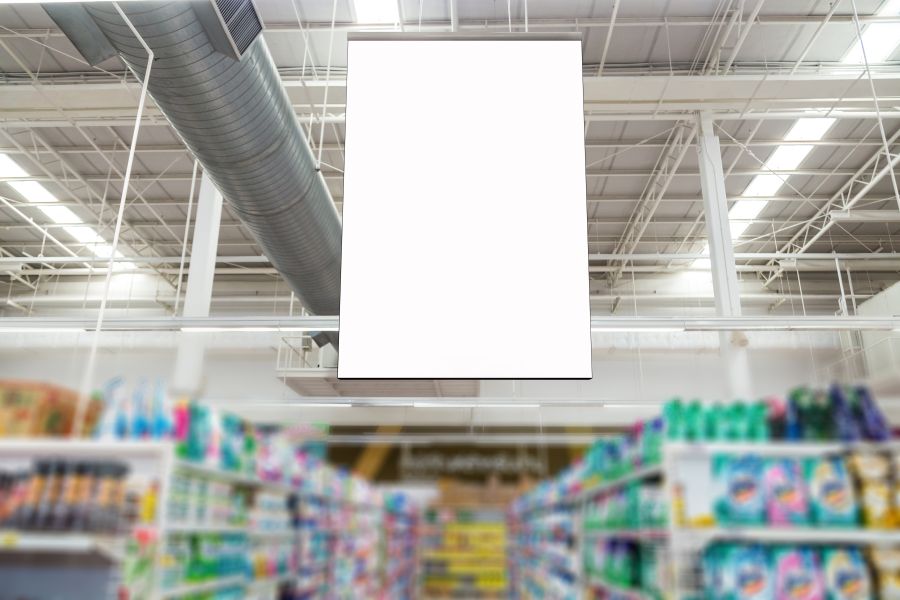

- Lightweight Hanging Signs

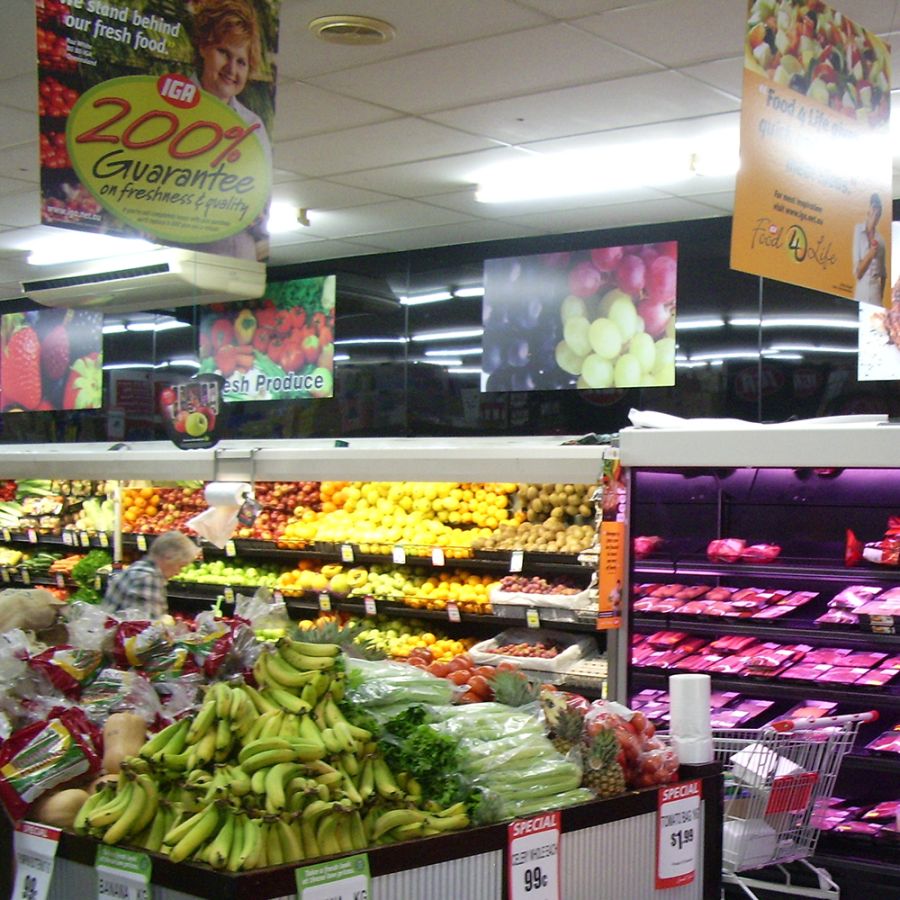

- POS Displays
- Vinyl Application

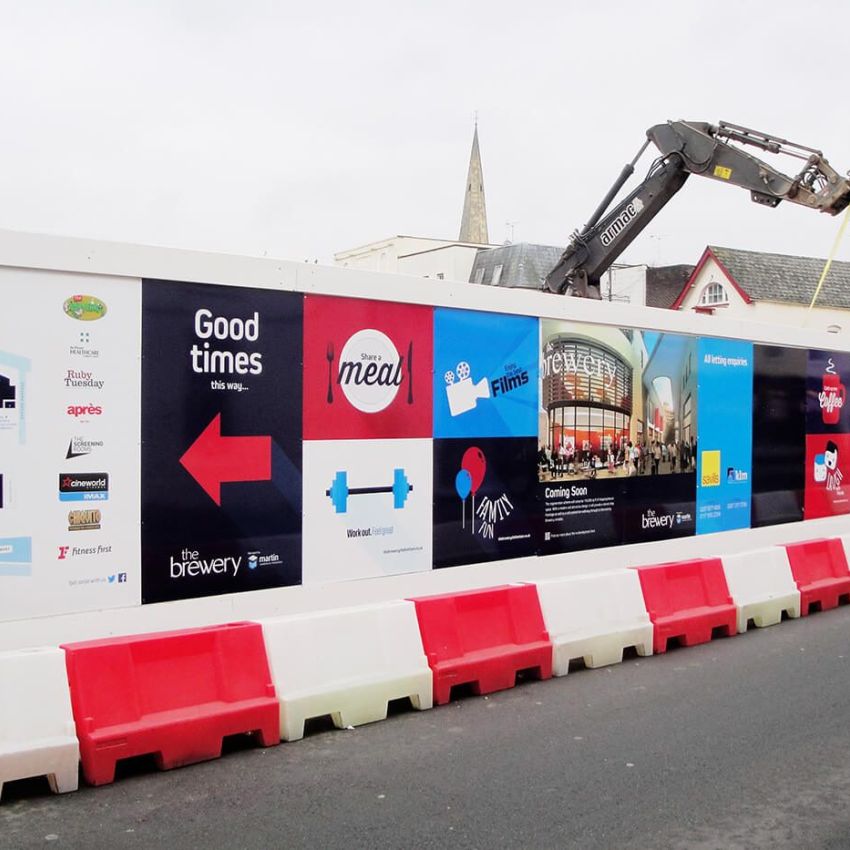

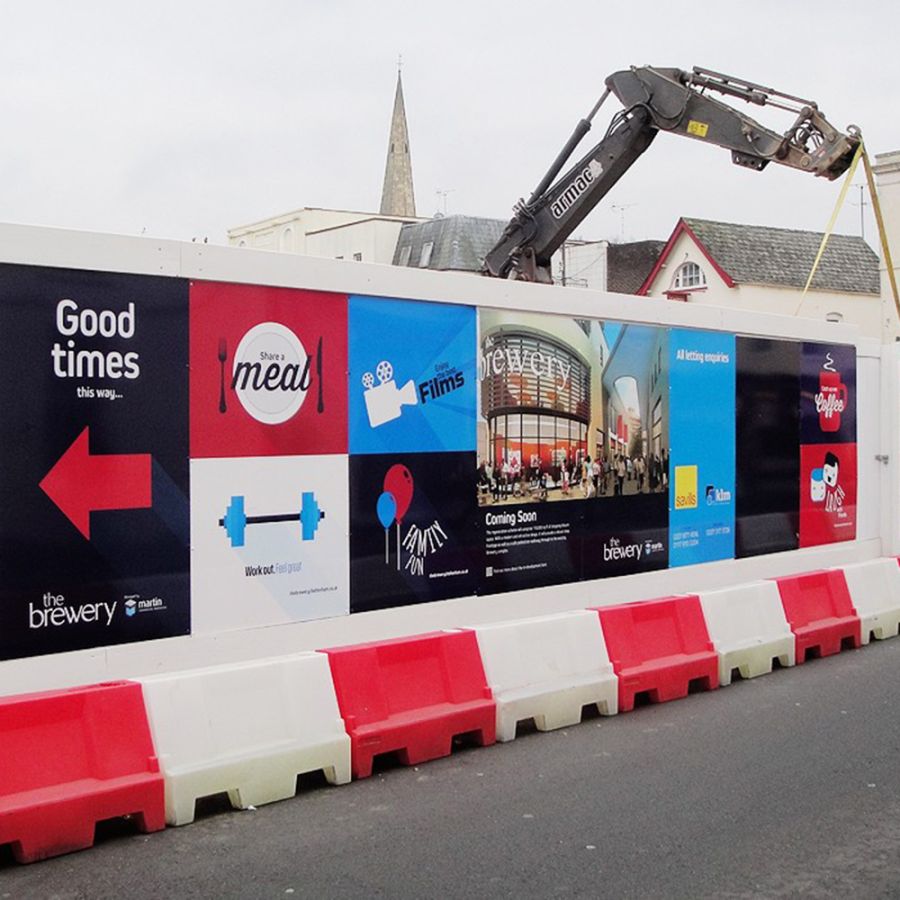

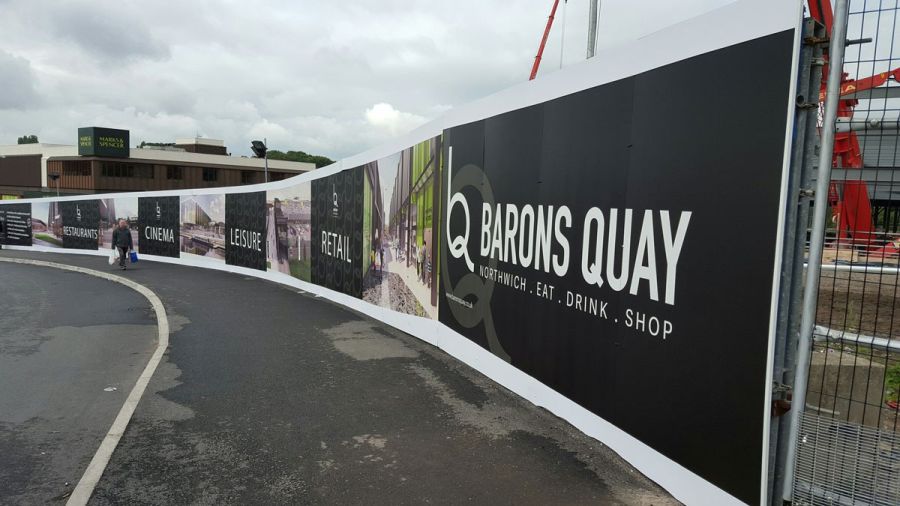

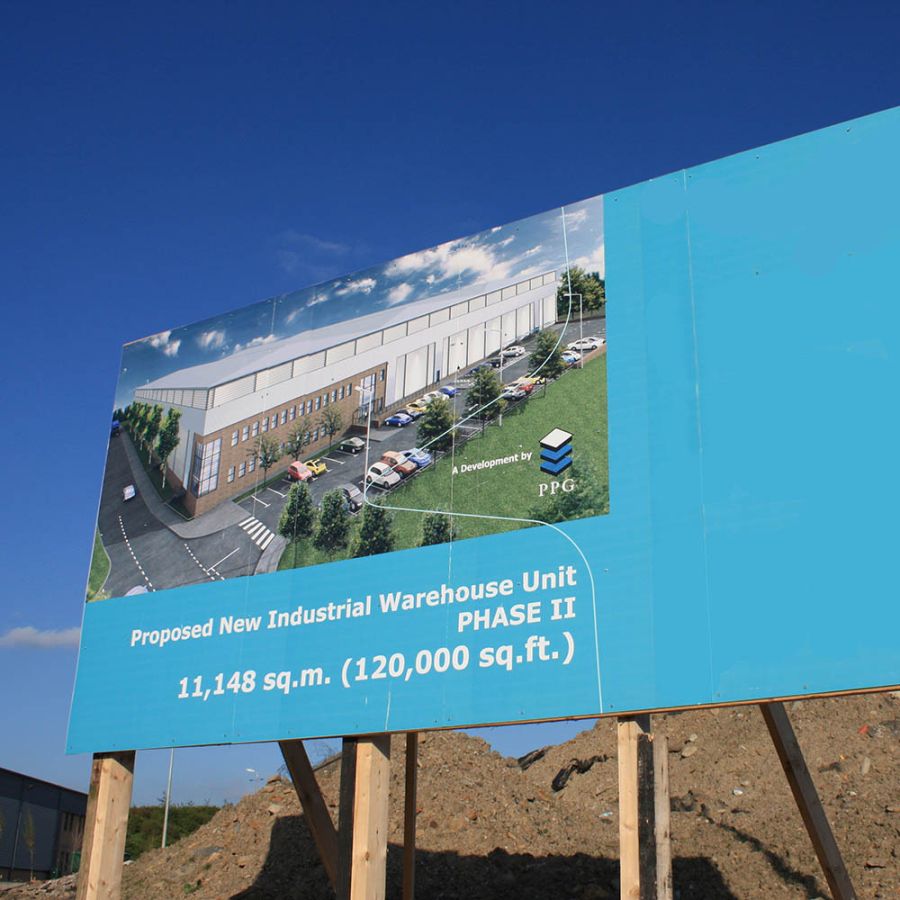

- Hoarding Panels
- Exhibition Design
- Outdoor Advertising
- Direct UV & Screen Printing
- Construction Site Signage
Fabrications
The following fabrication techniques are commonly undertaken with this product and more information can be found in the Fabrication Guide in the download section
- Sawing & Cutting
- Routing
- Drilling
- Riveting
- Hot Air Welding
- Clamping & Bolting
- Shearing
- Spray Painting & coating
- Punching
- UV and Screen Printing
Colours
Alupanel X's signature white point is Signal White
Alupanel X is available in Signal White Gloss and digital matt, Jet Black matt and brushed silver aluminium as well as a white primer backer.
Additionally, Alupanel X can also be colour matched to almost any RAL colour - allowing corporate colours to be matched with ease- subject to minimums and a lead time which will vary based on the specification of the panel and finish. Please talk to us about any special project requirements so we can get provide more specific information for your project.
Technical
Here are the sheet sizes and thicknesses available as standard along with the technical specification of Alupanel X.
| Panel Thickness | 2 | 3 |
|---|---|---|
| Aluminium Skin Thickness | 0.15 | 0.15 |
| Weight | 2.46 | 3.4 |
| 1000 x 2015 | ||
| 1000 x 2440 | ||
| 1000 x 2050 | ||
| 1000 x 3050 | ||
| 1000 x 3200 | ||
| 1220 x 2440 | ||
| 1220 x 3050 | ||
| 1250 x 2550 | ||
| 1250 x 3050 | ||
| 1250 x 3200 | ||
| 1250 x 4000 | ||
| 1500 x 3050 | ||
| 1500 x 3200 | ||
| 1500 x 4000 | ||
| 1500 x 4050 | ||
| 1525 x 3050 | ||
| 1560 x 3050 | ||
| 2000 x 3050 | ||
| 2000 x 3200 | ||
| 2000 x 4000 | ||
| 2000 x 4050 | ||
| 2050 x 3050 | ||
| 2050 x 4050 |
| Panel Thickness | 2 | 3 |
|---|---|---|
| Sound Absorption NRC | 0.05 | 0.05 |
| Sound Attenuation Rw db | 23 | 24 |
| Water Absorption % by Volume | 0.01 | 0.01 |
| Thermal Performance R Values | ||
| Core Composition | 100 % recycled LDPE | 100 % recycled LDPE |
| Fire Performance | EN 13501-1:2018 Class C-s2,d0 (only PE coated- excludes metallics) | EN 13501-1:2018 Class C-s2,d0 (only PE coated- excludes metallics) |
| Tensile Strength of Aluminium Layers | 149MPa | 149MPa |
| Thickness (mm) | +/- 0.2 |
| Width (mm) | -0 +2 |
| Length (mm) | -0 +3 |
| Diagonal (mm) | -0 +5 |
| Thermal Expansion | 2.4mm/m @100˚C Temp Difference |
| Aluminium Thickness | ± 0.02 |
| Pencil Hardness | >HB |
| Toughness of Coating | 3T |
| Temperature Resistance | -50˚C to +80˚C |
| Impact Strength (kg/CM2) | 50 |
| Boiling Water Resistance | Boiling for 2hrs without change |
| Acid Resistance | Immerse Surface in 2% HC1 for 24hrs without change |
| Alkali Resistence | Immersed surface in 2% NaOH for 24hrs without change |
| Oil Resistance | Immerse Surface in 20# engine oil for 24hrs without change |
| Solvent Resistance | Cleaned 100 times with Dimethylbenzene without change |
| Cleaning Resistance | >1000 times without change |
| Peel Strength | >5 Newton / mm |
