Why use Alupanel IMPACT?

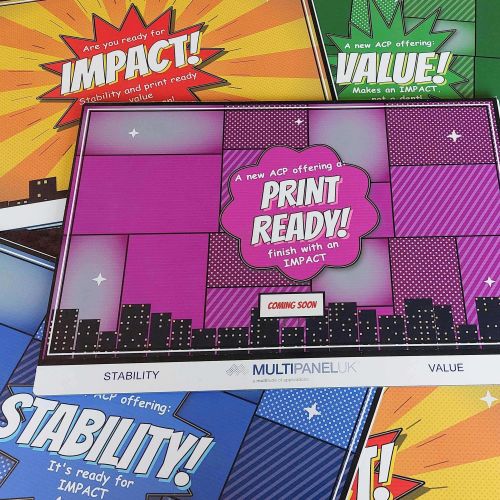

- "Stability and Print-Ready Value"
- Application: Flat application only
- Intended Use: Sign, Display and Print (not architectural façades)
- Manufactured in the UK
- 100% Recycled LDPE core and can be fully recycled after use
- Fire classification: EN 13501-1:2018 Class C-s2,d0
- Rigid, lightweight aluminium composite panel
- UV-resistant for outdoor use
- Flat, smooth, uniform surface
- For screen and digital print
- Clean, easy-peel film
- 1-year limited warranty
Overview

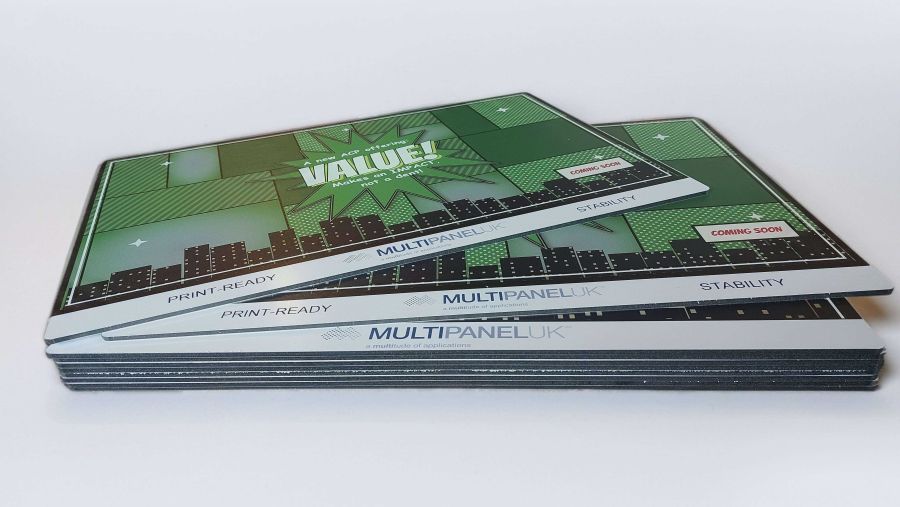

Alupanel IMPACT is a 3mm aluminium composite panel designed for high-volume sign, print and display projects where cost is a key factor. With a robust 0.18mm skin, positioned between Alupanel Lite and Alupanel X, it offers stability for flat-mount signage and everyday graphics. Manufactured in Britain with a 100% recycled LDPE core, fire classification EN 13501-1:2018 Class C-s2,d0 and our protective liner, Alupanel IMPACT provides a reliable, flat substrate designed for consistent ink adhesion and a professional finish for short-to-medium-term installations.
Available in 1250 x 2550mm and 1500 x 3050mm, Alupanel IMPACT features a Signal White Digital surface to optimise performance for direct-to-substrate printing and general signage. It offers UK-made quality at a price suited to high-volume work, making it a dependable choice for high-volume display projects that need efficiency and value.
0.18mm Skin
A thicker skin than Alupanel X, offering the rigidity needed for flat-mount signage and displays at a cost-effective price.

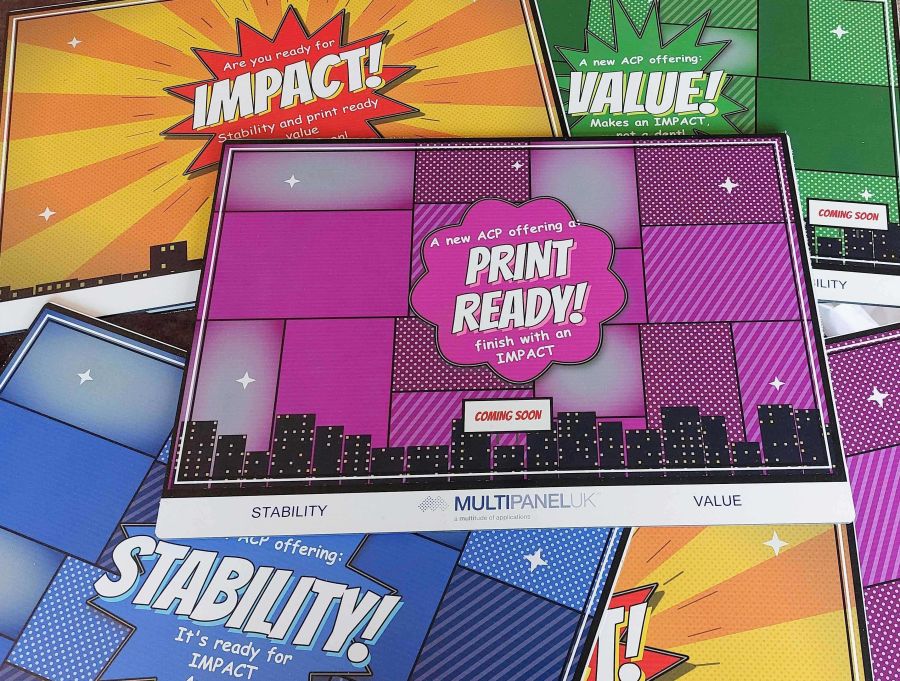

Signal White Digital Surface
Designed for consistent ink adhesion and colour, giving a professional finish for direct-to-substrate printing and everyday graphics.
Cost-Effective Pricing
Priced for high-volume, cost-sensitive sign and display projects, with the reliability of UK manufacture.
British-Manufactured Quality
UK manufacture supports consistent quality and availability, with shorter lead times.
100% Recycled Core
100% recycled LDPE core, and used panels can be fully recycled after use through Multipanel UK.
Fire Classification
Fire classification: EN 13501-1:2018 Class C-s2,d0.
Protective Liner
Protects the surface during transport, processing and handling, helping to reduce waste and rework on high-volume print runs.
Optimised Dimensions
Available in 1250 x 2550mm and 1500 x 3050mm sheets to maximise yield and minimise waste across standard sign and display formats. Talk to us about other requirements.
Fabrication Guide:
Learn how to the get the best out of the product here
Videos:
See how it works here
Applications

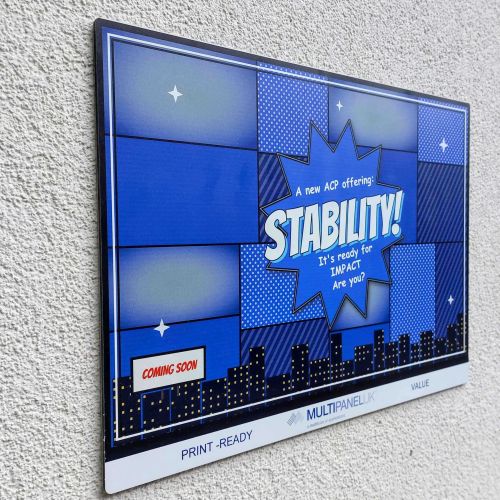

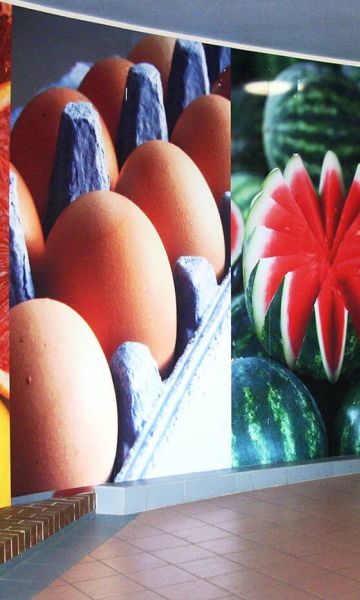

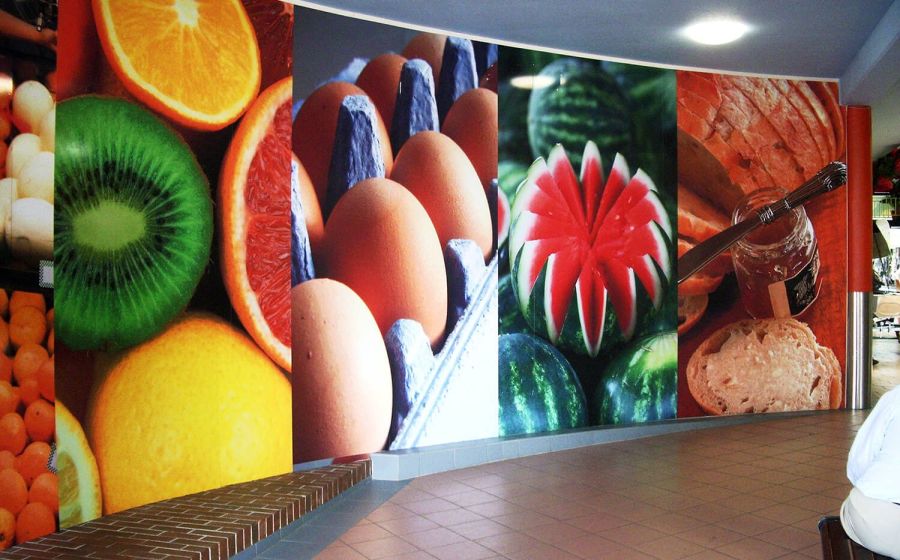

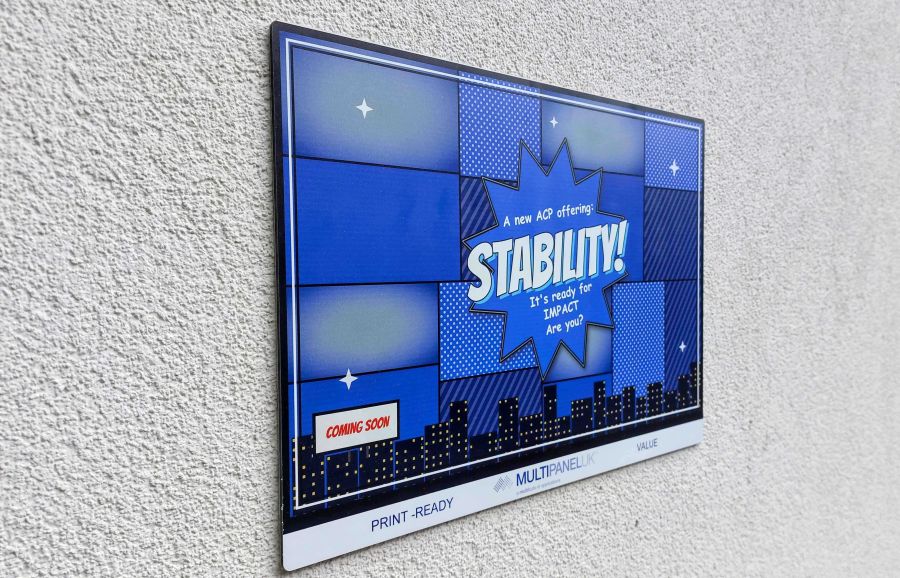

Designed for high-volume projects and flat-mount signage, Alupanel IMPACT provides a stable, reliable digital substrate for direct-to-substrate printing. It is a cost-effective choice for short-to-medium-term installations, offering a smooth, flat surface designed for consistent ink adhesion and a professional finish for everyday graphics.

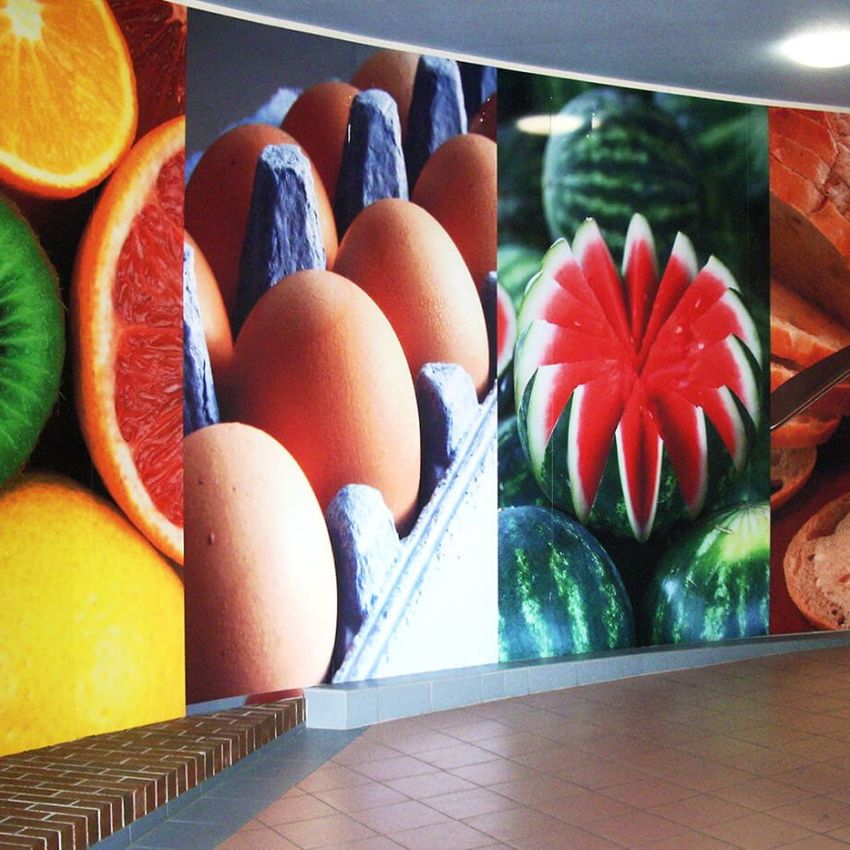

<<< Click the left and right arrows on the photo to see more examples of product applications
This product can be used for the following applications:
- Sign Making
- Wayfinding
- Standoff Lettering
- Lightweight Hanging Signs
- POS Displays
- Vinyl Application
- Modular Sign Systems
- Hoarding Panels
- Exhibition Design
- Direct UV & Screen Printing
Fabrications
The following fabrication techniques are commonly undertaken with this product and more information can be found in the Fabrication Guide in the Download section
- Sawing & Cutting
- Routing
- Drilling
- Riveting
- Clamping & Bolting
- Shearing
- Spray Painting & coating
- Punching
- UV and Screen Printing
Colours
Alupanel IMPACT is available with our trusted Signal White digital finish on both sides
Technical
| Panel Thickness (mm) | 3 |
| Skin (mm) | 0.18 |
| Weight (Kg/m2) | 3.46 |
| 1250 x 2550mm | |
| 1500 x 3050mm |
| Panel Thickness | 3 | |
|---|---|---|
| Sound Absorption NRC | 0.05 | |
| Sound Attenuation Rw db | 24 | |
| Water Absorption % by Volume | 0.01 | |
| Thermal Performance R Values | 0.0080 | |
| Core Composition | 100 % recycled LDPE | |
| Fire Performance | EN 13501-1:2018 Class C-s2,d0 | |
| Tensile Strength of Aluminium Layers | 149MPa |
| Thickness (mm) | 3 |
| Width (mm) | -0 + 2 |
| Length (mm) | -0 + 3 |
| Diagonal (mm) | -0 + 5 |
| Thermal Expansion | 2.4mm/m @100ºC Temp Difference |
| Skin | As specified in EN485-4 |
| Pencil Hardness | 2H |
| Toughness of Coating | 3T |
| Temperature Resistance | -50ºC to +80ºC |
| Impact Strength (kg/CM2) | 50 |
| Boiling Water Resistance | Boiling for 2hrs without change |
| Acid Resistance | Surface immersed in 2% HC1 for 24hrs without change |
| Alkali Resistance | Surface immersed in NaHO engine oil for 24hrs without change |
| Oil Resistance | Surface immersed in 2% engine oil for 24hrs without change |
| Solvent Resistance | Cleaned 100 times with Dimethylbenzene without change |
| Cleaning Resistance | >1000 times without change |
| Peel Strength | >3 Newton/mm |
