Why use Multishield?
- A Steel Standard for whiteboards & Interactive Surfaces
- Application: Fabrication/Folding/Flat usage
- Intended Use: Sign, display and Print (not architectural facades)
- Manufactured in the UK
- Has a 100% Recycled LDPE core and can be fully recycled after use
- Fire classification: EN 13501-1:2018 Class C-s2,d0
- Strong & durable galvanised steel
- Available in whiteboard/Signal White Digital finish or with Signal White Digital on both sides
- Magnetically receptive surface
- The digital surface receives dry erase laminates.
- Self-supporting substrate
- 5-Year Warranty for internal installations (see warranty terms) *
* Multishield can be used outdoors, but the 5-year warranty covers internal installations only
ABL Imaging specializes in the production / fabrication of custom graphics, signage and art reproduction. We have been using the Alupanel products for some time now, and as time goes on we continually find new uses for the product. From a simple mounted image to a more complex crease and fold application, we have come to rely on Alupanel as a staple substrate in our operation. It is lightweight, yet strong, is printable, has the ability to be creased and folded, and has a variety of finishes – all of which allows us to release our creative forces – the possibilities seem endless!
Susan Otterson, ABL Imaging Group
Overview
Both sides of the panel have a flat, smooth, uniform surface. Available coatings include a digital finish to help produce vibrant, colour-fast prints, and a whiteboard coating, suitable for use with dry-wipe markers. Multishield® is available in either digital/digital or digital/whiteboard options.

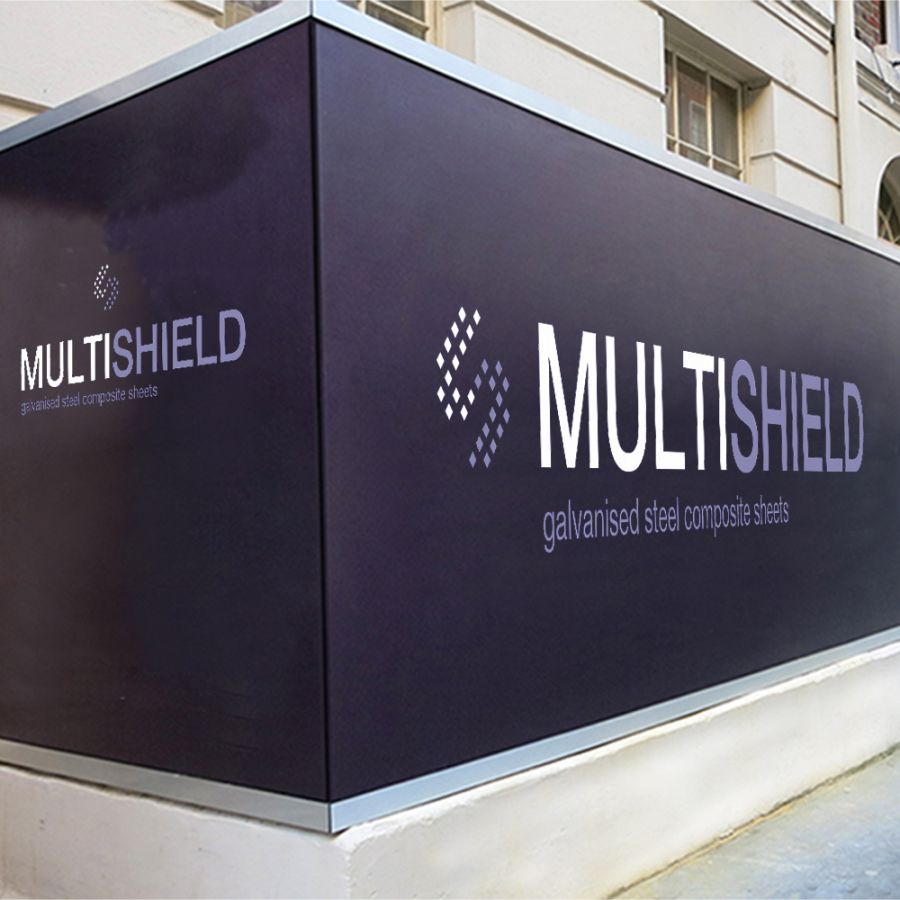

Ideal for hoardings, whiteboards, printing and many other applications, the galvanised steel provides additional strength plus the versatility of a magnetically receptive surface. Multishield® panels can be fabricated, are strong, self-supporting and offer outstanding reliability with the backing of a 5 year guarantee * for interior use.
*Our 5 years guarantee covers for indoor installations only and the panels can not be exposed to any sort of moisture or high humidity including condensation.
>> VIDEO - MULTISHIELD, PRINT & LAMINATE
Applications

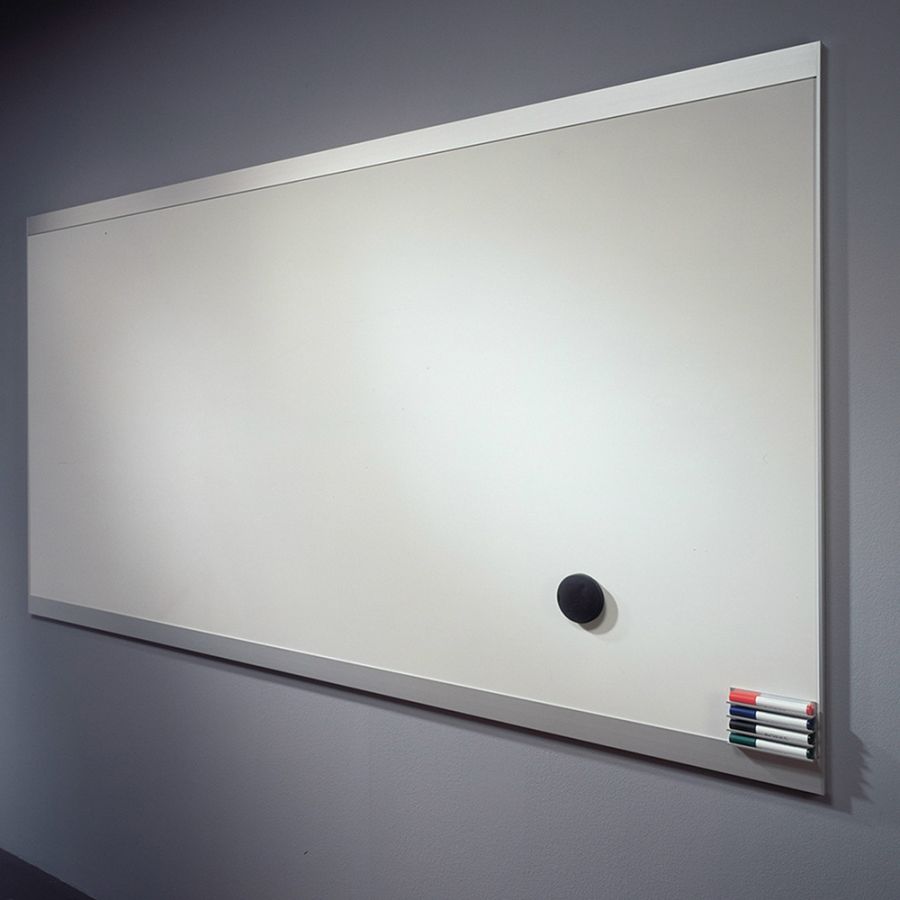

Multishield is used where a magnetic, writable or printable surface is needed. A transparent dry-erase laminate can be applied over a printed Signal White Digital surface to make an interactive, writable display.
The Digital Polyester finish allows custom images, tables or information to be printed onto the sheet. Applying a transparent dry-erase laminate over the print converts it into an interactive surface that can be written on and used with magnetic accessories, combining the function of the Dry Erase Whiteboard finish with bespoke printed content

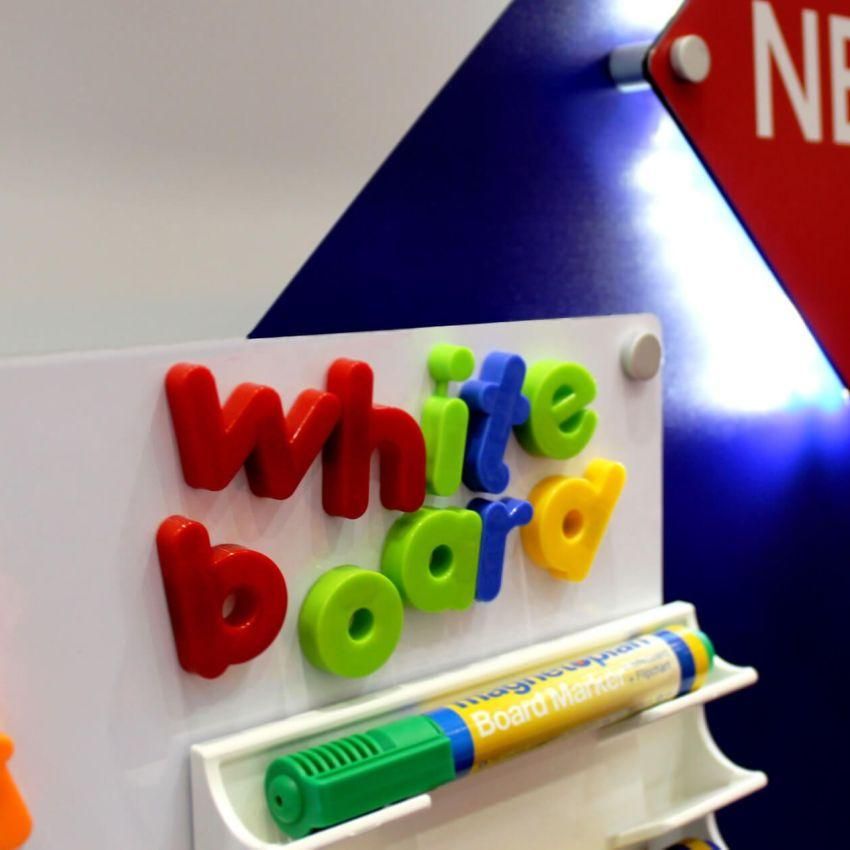

<<< Click the left and right arrows on the photo to see more examples of product applications
This product can be used for the following applications:
- POS Displays
- Interior Panels & Decoration
- Direct UV & Screen Printing

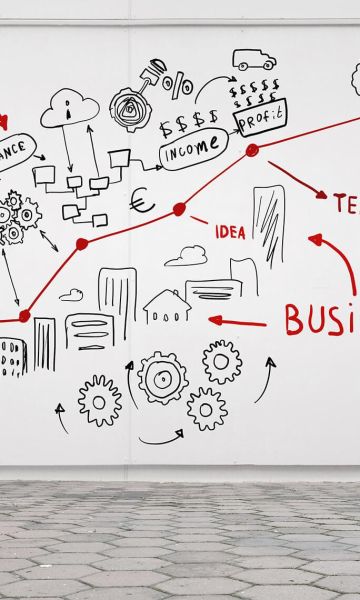

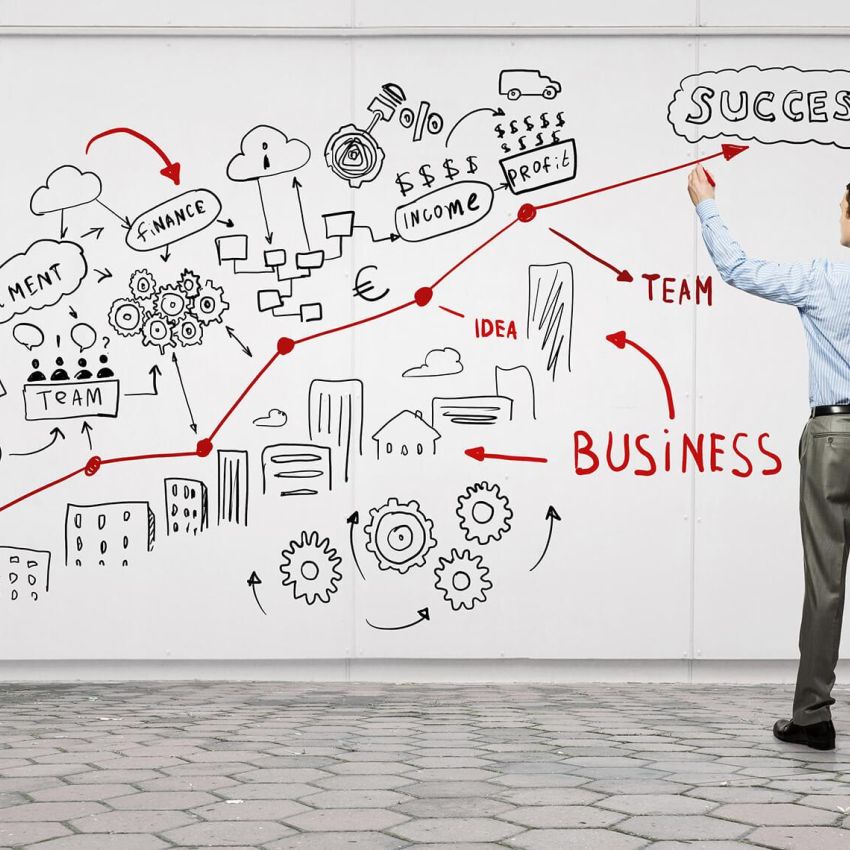

- Whiteboards

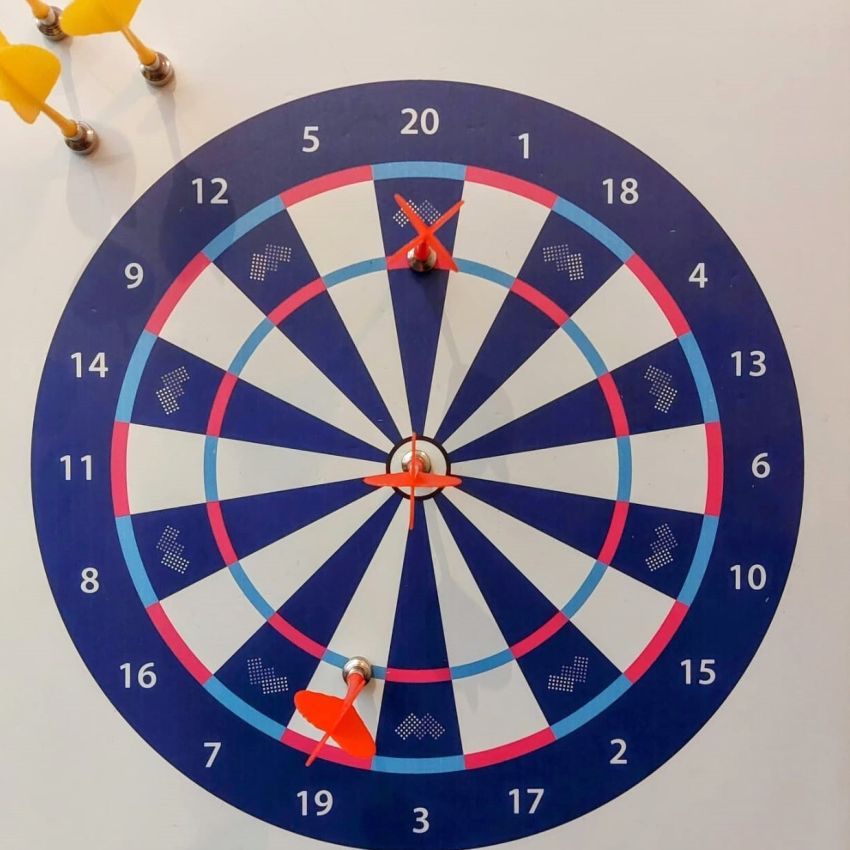

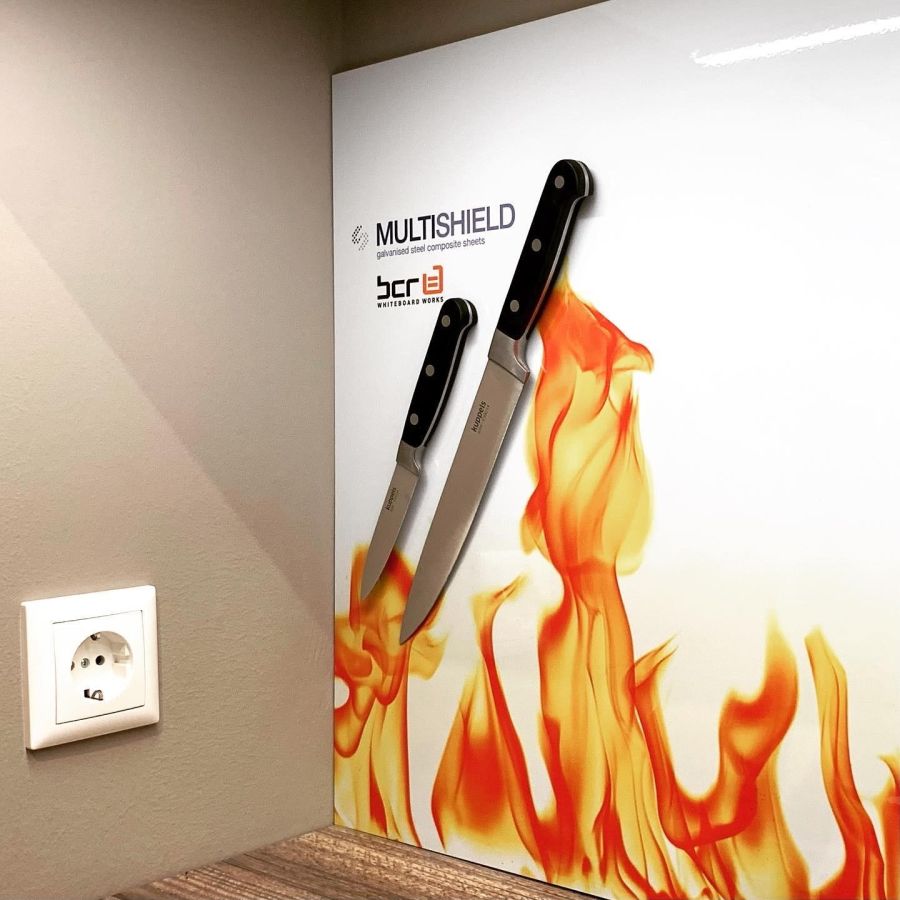

- Magnetic Displays
Fabrications
The following fabrication techniques are commonly undertaken with this product. More information can be found in the Fabrication Guide and the Multishield cutting tips in the Download section
- Sawing & Cutting
- Routing
- Drilling
- Riveting
- Clamping & Bolting
- Spray Painting & coating
Colours
Multishield is available in our high quality Signal White digital matt polyester coating and a modified polyester gloss dry-erase whiteboard finish, matched to the same colour.
Technical
Here are the sheet sizes and thicknesses available as standard along with the technical specification of Multishield
| Panel Thickness | 3 |
| Steel Skin Thickness | 0.25mm (Steel) |
| Weight | 6.35kg/m2 |
| 1220 x 2440 | |
| 1220 x 3050 |
| Panel Thickness | 3 |
| Sound Absorption NRC | |
| Sound Attenuation Rw db | |
| Water Absorption % by Volume | |
| Thermal Performance R Values | |
| Core Composition | 100 % recycled LDPE |
| Fire Performance | EN 13501-1:2018 Class C-s2,d0 |
| Tensile Strength of Steel Layers (MPa) | 450 |
| Thickness (mm) | +/-0.2 |
| Width (mm) | -0 +2 |
| Length (mm) | -0 +3 |
| Diagonal (mm) | -0 +5 |
| Thermal Expansion (mm/m °C) | 0.024 |
| Skin (mm) | 0.25 |
| Pencil Hardness | >4H |
| Toughness of Coating | > 3H (Whiteboard) > HB (Digital) |
| Temperature Resistance (°C) | -20 - +80 |
| Boiling Water Resistance | 98±2°C x 2 hours - Pass |
| Solvent Resistance | MEK > 200 (no base exposed) |
| Whiteboard Adhesion (QB/T 4153/2010) | Meets Criteria |
| Erasability (QB/T 4153/2010) | Meets Criteria |
| Abrasion Resistance (QB/T 4153/2010) | Meets Criteria |
| Impact Strength (J) | 9 |
| Peel Strength (N/mm) | > 3 |
| T Bend | 2 T |
