Why use Alupanel Traffic?
Engineered for Permanent Road Signage
Manufactured in the UK, reducing your carbon footprint
100% Recycled LDPE core and can be fully recycled after use
Meets fire test EN 13501-1:2018 to class C-s2,d0
Uniform, flat surface
Lightweight yet rigid
Easy to install
Available with low minimum order quantities
Resistant to corrosion and wind
Versatile and easily formable
Alupanel Traffic Permanent has a 12-year warranty
Overview
Alupanel Traffic Permanent is a substrate engineered specifically for permanent road and highway signage. Constructed with a robust 0.30mm skin bonded to a polyethylene core, it delivers the structural rigidity and surface flatness required for long-term outdoor exposure and reliable reflective film adhesion.
Manufactured in the UK, Alupanel Traffic Permanent provides highway authorities, sign manufacturers, and contractors with a panel they can trust to perform across years of weathering, UV exposure, and mechanical stress. Its high-bond surface ensures that retroreflective sheeting adheres securely and uniformly, maintaining legibility and compliance throughout the installation lifetime.
The 0.30mm skin provides the load resistance and anti-flutter performance required for fixed roadside and gantry installations. Available in a range of standard sheet sizes and thicknesses, it is the trusted choice across the UK road network for directional, regulatory, and warning signs where long-term reliability is non-negotiable.
Key Benefits:
Engineered for permanent vertical road traffic signs
providing specifiers and highway authorities with full confidence in compliance.
0.30mm Aluminium Skin
The heavier skin gauge provides superior structural rigidity and resistance to wind loading and vibration, essential for roadside and gantry-mounted permanent installations.
Premium Reflective Film Bond Surface
The factory-applied paint finish is specifically formulated to achieve optimum adhesion with retroreflective sheeting, ensuring long-term legibility and sign performance.
Proven Outdoor Durability
UV-stable polyester paint finish and corrosion-resistant aluminium construction deliver decades of reliable performance in all weather conditions without delamination or surface degradation.
Manufactured in the UK
British manufacture guarantees consistent quality, rapid availability, and full supply chain traceability, reducing lead times for highway contractors and local authorities.
Cost-Effective Long-Term Value
Superior material quality reduces sign replacement frequency, lowering whole-life costs for highway management and maintenance programmes.
Fabrication Guide:
Learn how to the get the best out of the product here
Videos:
See how it works here:

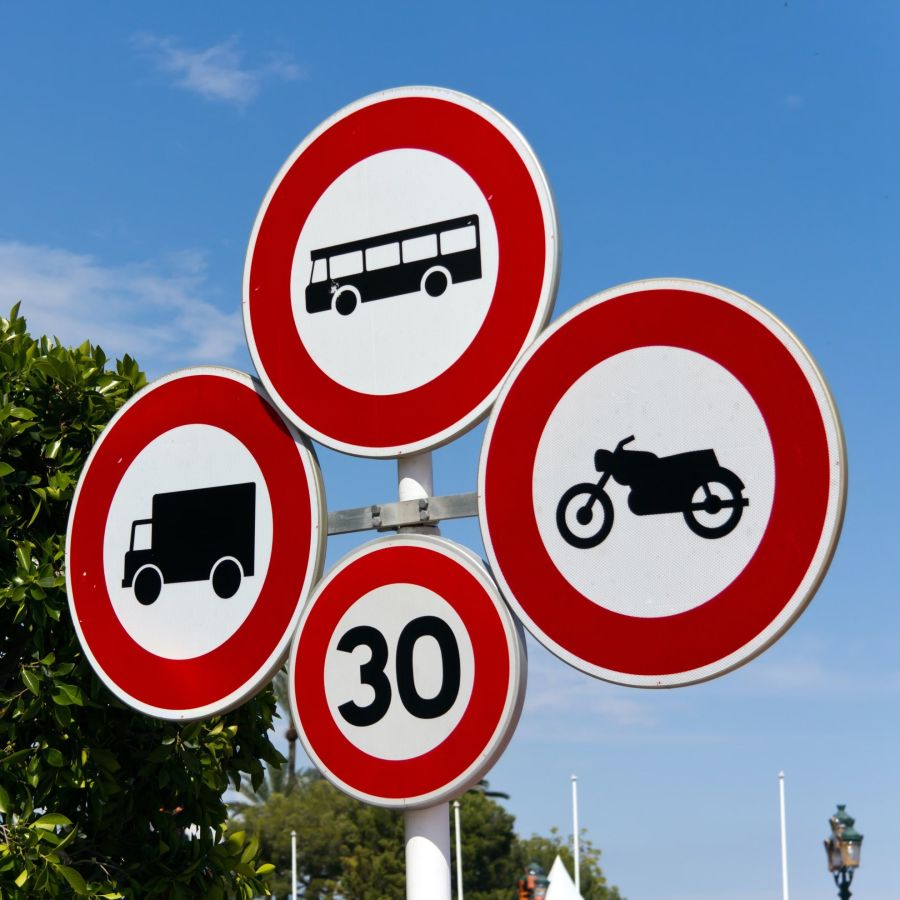

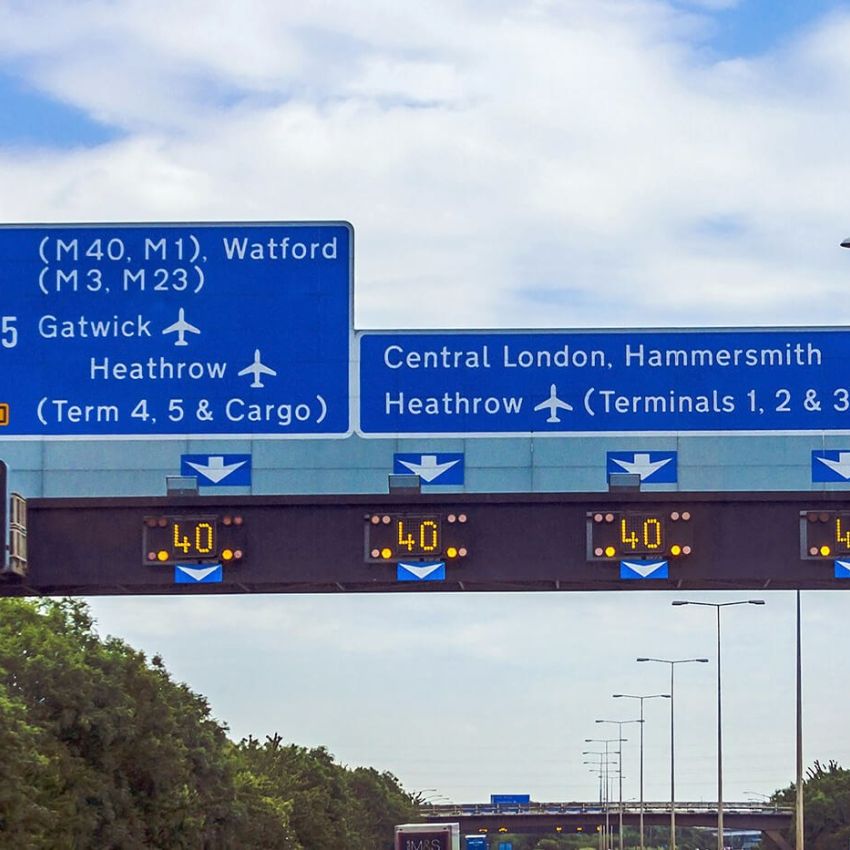

Applications

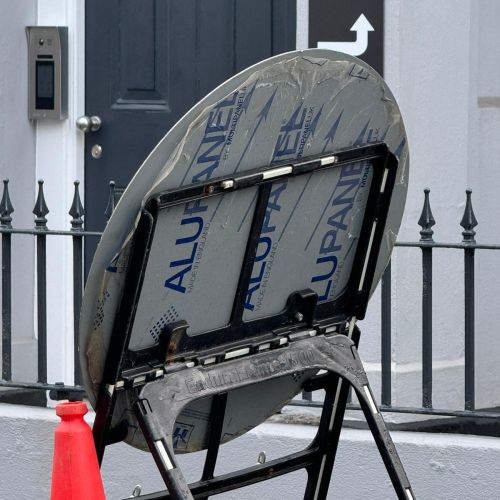

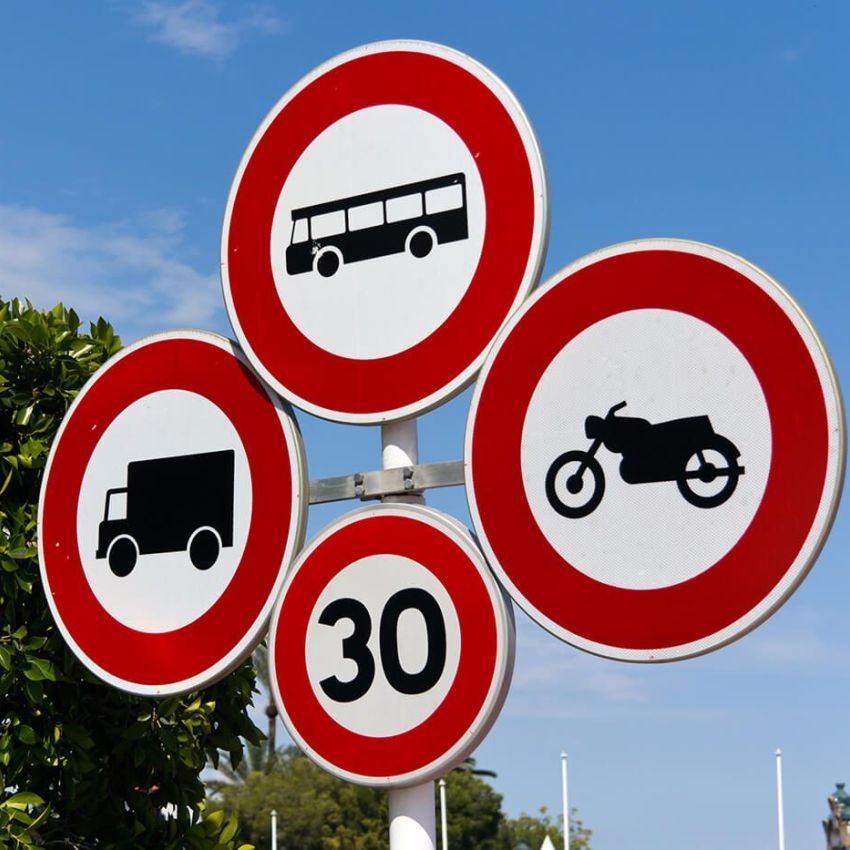

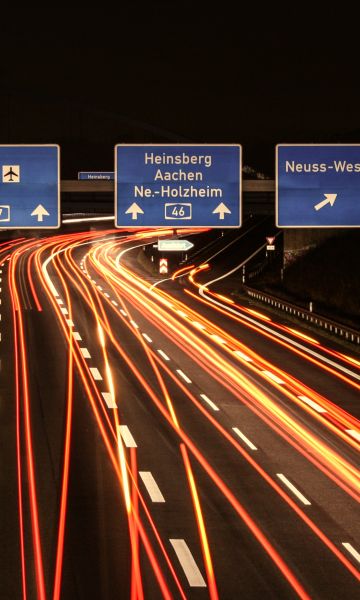

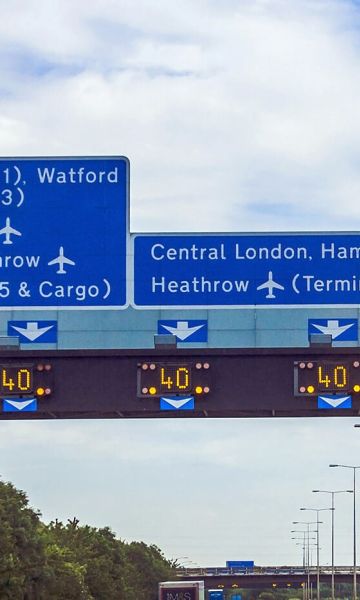

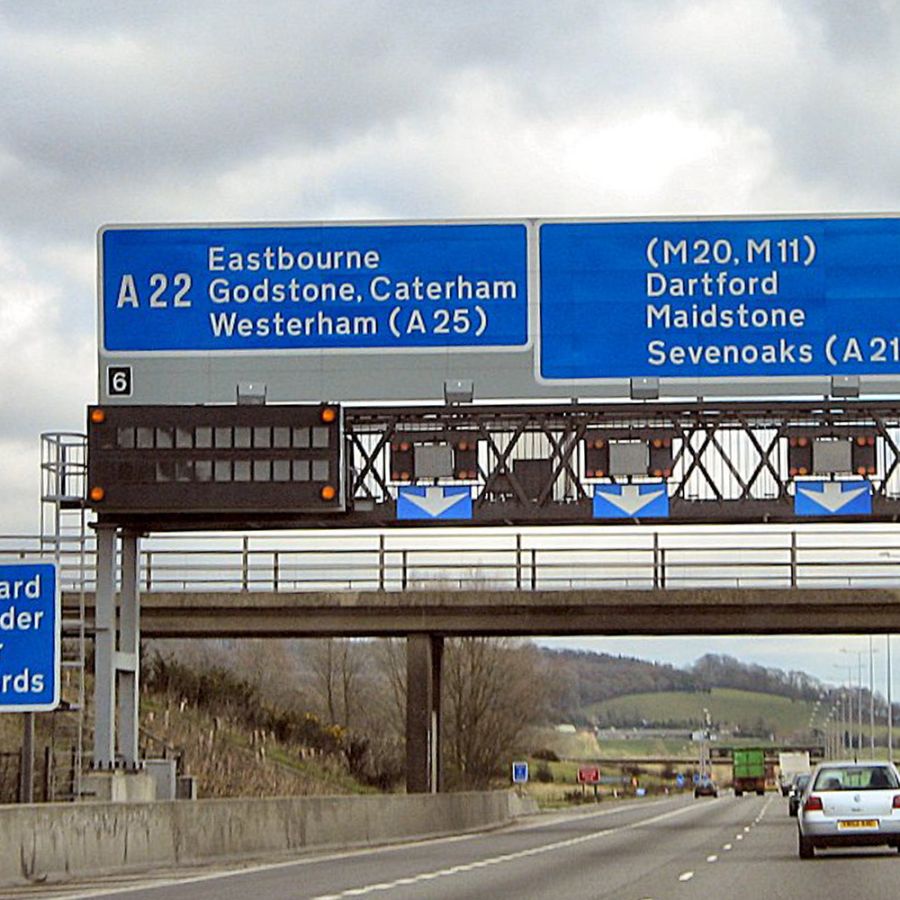

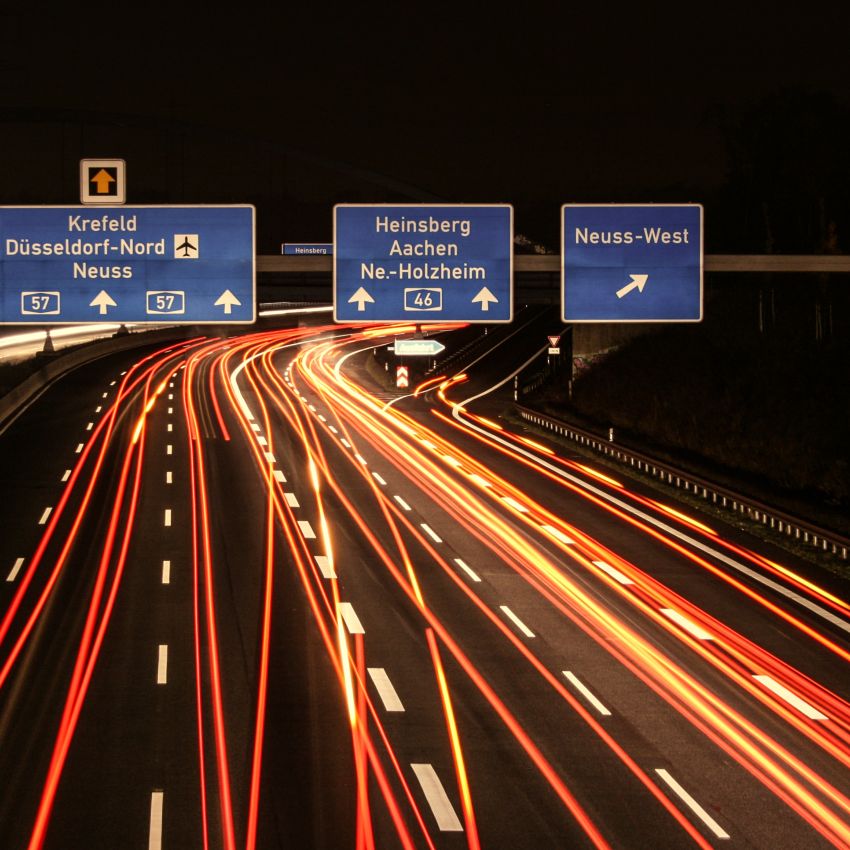

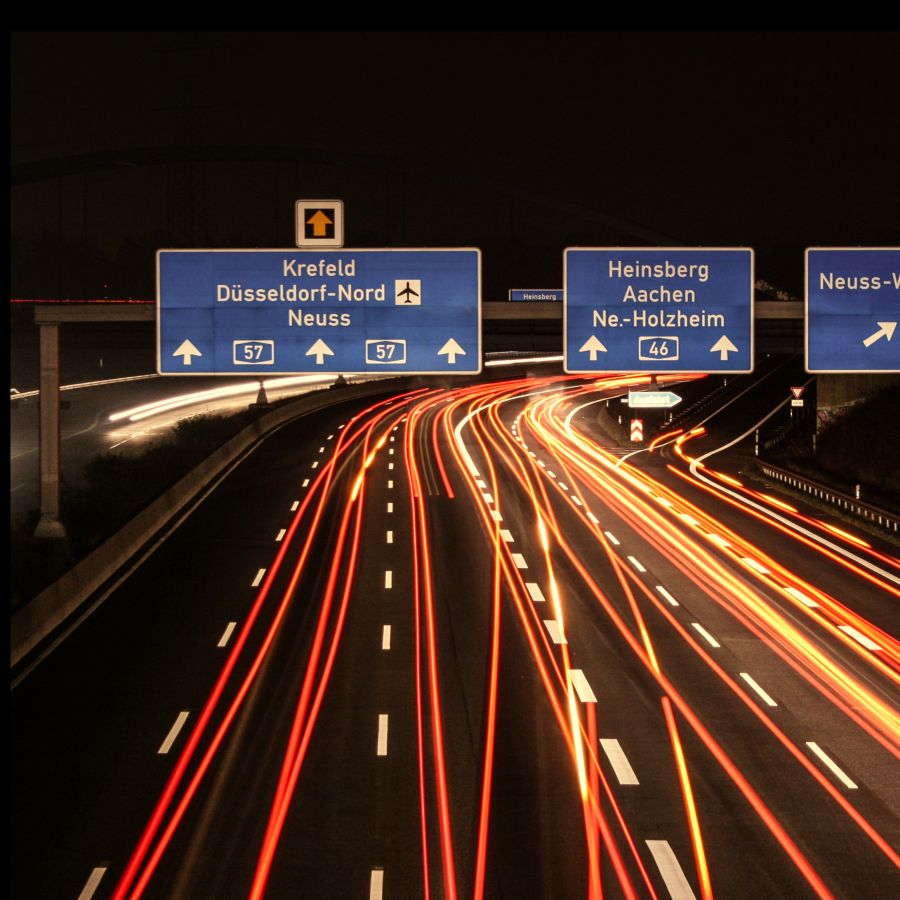

Alupanel Traffic has been developed by Multipanel UK Ltd specifically for use in the production of permanent and temporary road traffic signs.
<<< Click the left and right arrows on the photo to see more examples of product applications
This product can be used for the following applications:
- Wayfinding
- Vinyl Application
- Road Signs
- Construction Site Signage
Fabrications
The following fabrication techniques are commonly undertaken with this product and more information can be found in the Fabrication Guide in the Download section
- Sawing & Cutting
- Routing
- Drilling
- Riveting
- Clamping & Bolting
Colours

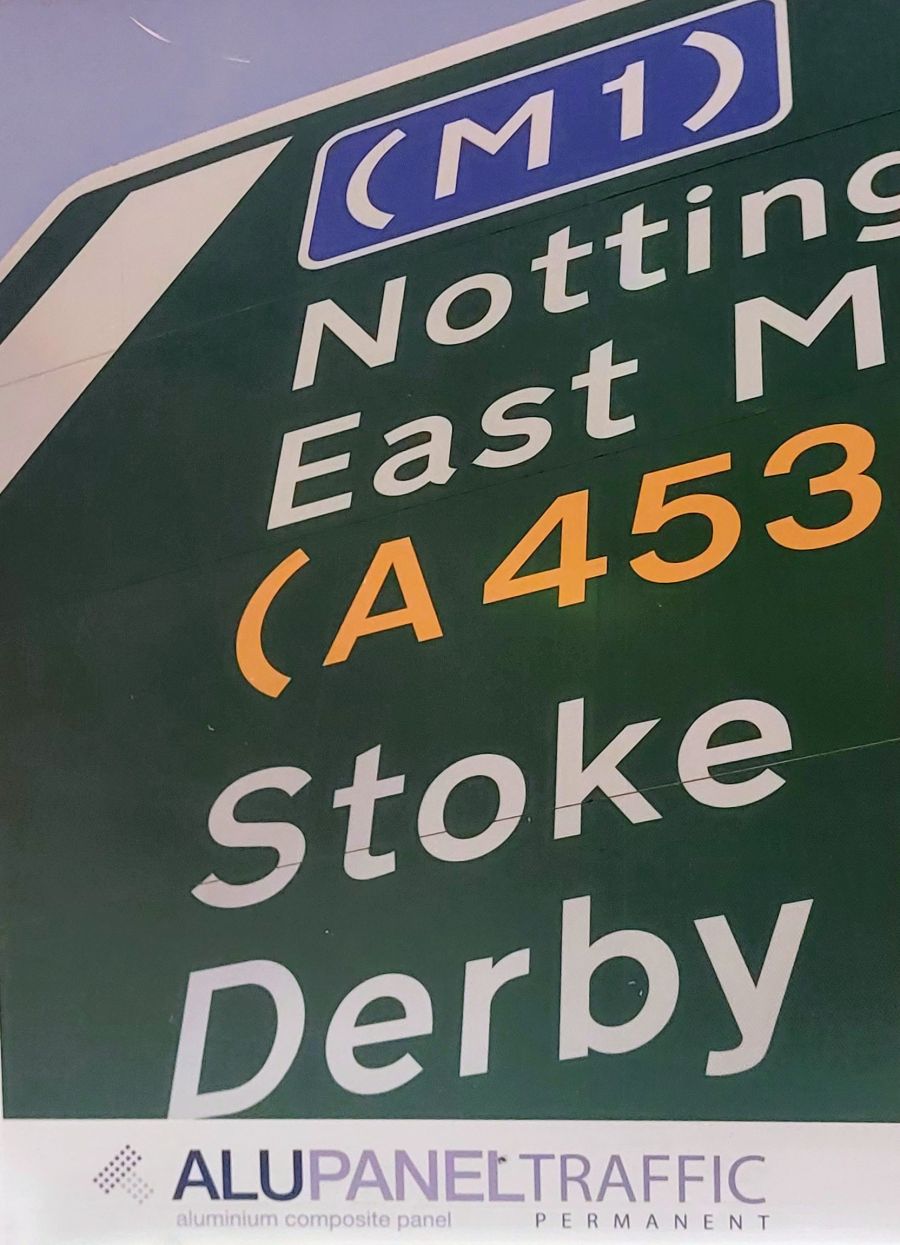

Alupanel Traffic Permanent
Alupanel Traffic Permanent is available with a reverse side in Traffic Grey Matt or Jet Black Matt. The front face is left as an uncoated, degreased, milled aluminium surface, giving reflective laminates the clean, consistent bond they require.
Technical
Here are the sheet sizes and thicknesses available as standard along with the technical specification of Alupanel Traffic Permanent
| Panel Thickness | 3 |
| Skin | 0.3 |
| Weight | 4.08 |
| 1220 x 2440 | |
| 1525 x 3050 |
| Panel Thickness | 3mm |
| Sound Absorption NRC | 0.05 |
| Sound Attenuation Rw db | 24 |
| Water Absorption % by Volume | 0.01 |
| Thermal Performance R Values | 0.0080 |
| Core Composition | 100 % recycled LDPE |
| Fire Performance | EN 13501-1:2018 Class C-s2,d0 |
| Tensile Strength of Aluminium Layers | 149 |
| Thickness (mm) | 3mm -0 +0.2 |
| Width (mm) | -0 +2 |
| Length (mm) | -0 +3 |
| Diagonal (mm) | -0 +5 |
| Thermal Expansion | 2.4mm/m @100ºC Temp Difference |
| Aluminium Thickness | 0.30mm |
| Pencil Hardness | > HB |
| Toughness of Coating | 3T |
| Temperature Resistance | -50ºC to +80ºC |
| Impact Strength (kg/CM2) | 50 |
| Boiling Water Resistance | Boiling for 2hrs without change |
| Acid Resistance | Surface immersed in 2% HC1 for 24hrs without change |
| Alkali Resistence | Surface immersed in NaHO engine oil for 24hrs without change |
| Oil Resistance | Surface immersed in 2% engine oil for 24hrs without change |
| Solvent Resistance | Cleaned 100 times with Dimethylbenzene without change |
| Cleaning Resistance | >1000 times without change |
| Peel Strength | >5 Newton/mm |
